JBC solder fume extractor
Protect your team
from harmful solder fumes with JBC solder fume extraction solution for
soldering stations
The JBC FAE1 setup on the video includes
- A fume-extracting arm for precise extraction over the PCB
- Ability to fume-extract on one and up to four soldering stations at once.
Note: other setups are available
- contact us for more info.
JBC FAE1 fume extractor
Here’s how it keeps your soldering environment safe
Solder fume extractors enhance workplace safety by capturing and filtering airborne contaminants generated during soldering, ensuring that purified air is recirculated into the environment.
Filter
99.95% fume cleaning with 3-stage filtration system
top extraction
Features an over-PCB
fume-extracting arm
stand extraction
In stand fume-extracting when iron is placed the stand
Quiet
Operates quietly, maintaining a calm workspace

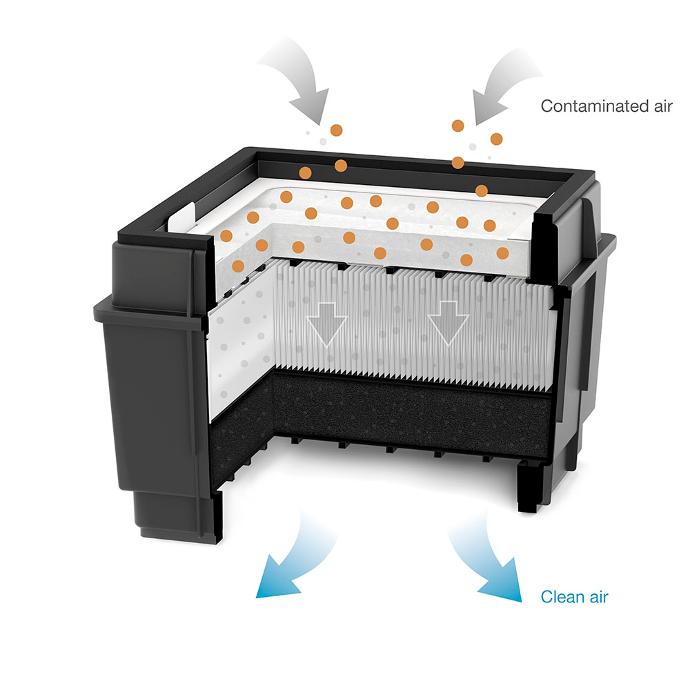

Advanced 3-stage solder fume extractor filtering
Cleaner air for a healthier workplace
The 1st stage captures large solid particles, protecting the more sensitive filters below and significantly extending their lifespan.
Average efficiency for particles of 0.4 μm: 40-60% (in accordance with EN 779)
This 2nd stage removes the remaining fine particles. The system features either an:
- H13 HEPA filter with a 99.95% efficiency for MPPS (Most Penetrating Particle Size), or the
- H14 HEPA filter for environments requiring ultra-pure air e.g. clean rooms, achieving an efficiency of 99.995%
Both H13 and H14 are compliant with EN 1822 standards.
* MPPS (Most Penetrating Particle Size) corresponds to the particle size at which the filter has a lower efficiency. The MPPS depends on the filter and the air flow, although usually it lies between 0.1-0.3 μm.
The 3rd and final filter stage absorbs harmful gas molecules using a highly porous carbon structure.
This system's efficiency is optimized by lower airflow rates, allowing fumes more time to diffuse and be fully absorbed.
Let us assist you in creating a
healthier environment for your soldering workers
contact us today for prices and more info
