Yamaha pick & place machines for your SMT line
Faster changeovers, fewer placement errors and a line that keeps running
– with Yamaha pick & place and an SMT partner close by
Prototypes on Monday, 10.000 boards on Tuesday? Or maximum output on a high runner?
Either way, the right pick & place machine sets the pace for your whole SMT line.
At CORE-emt, we help OEM and EMS manufacturers in Scandinavia, Finland and the Baltics choose, configure and run Yamaha pick & place equipment that fits their production, not just the spec sheet. So you get a line that delivers from day one.

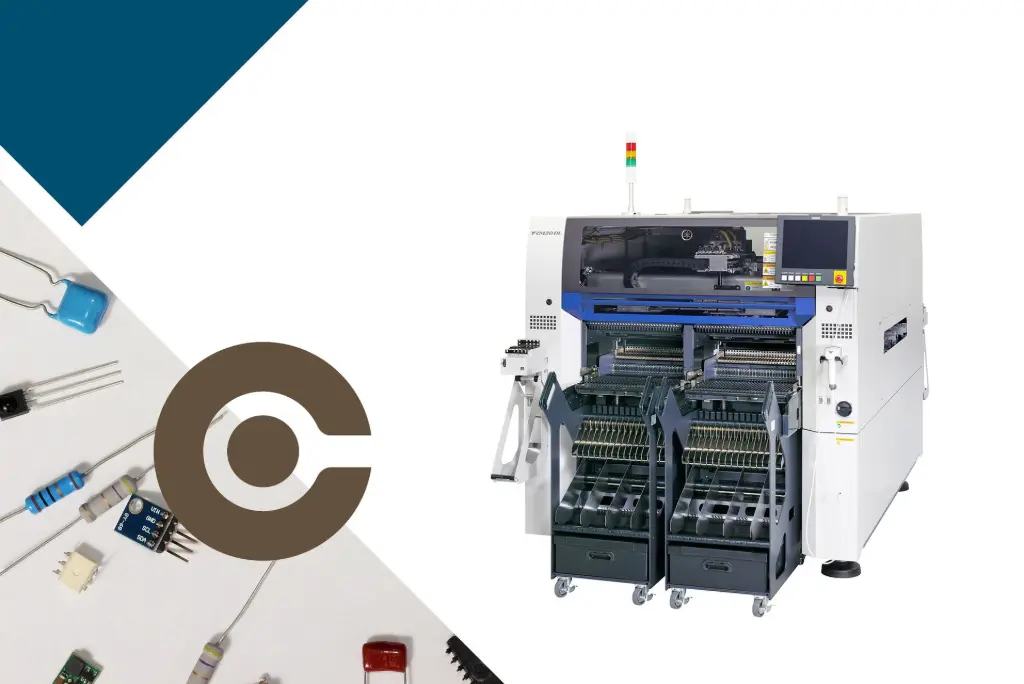

Yamaha YRM20 DL - dual lane mounter
Two jobs, one machine
Run two different products side by side, or the same job at full speed. A dual-lane premium mounter with the rotary RM head and up to 120.000 CPH.

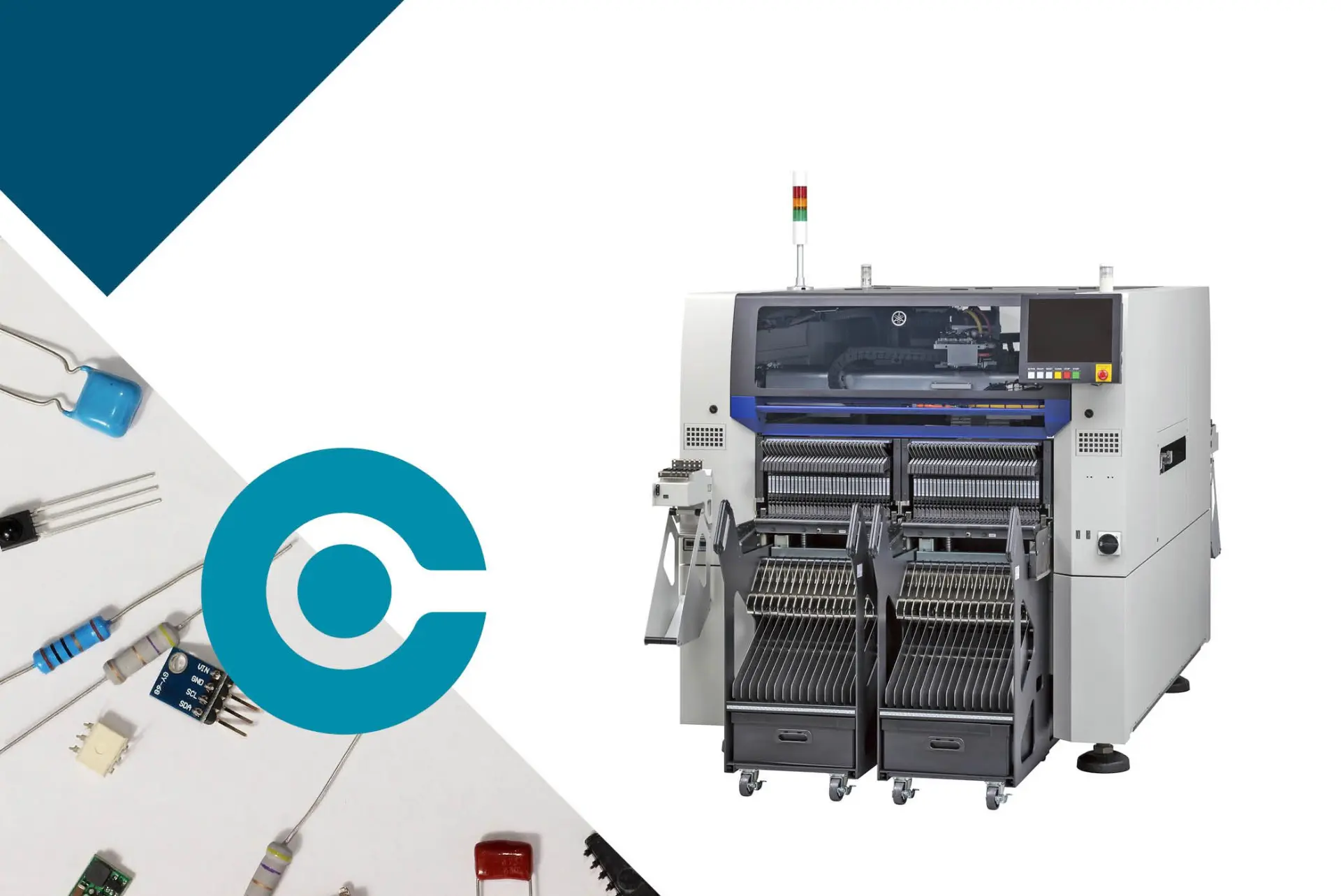

Yamaha YRM20
High output, high mix
Keep throughput high while you switch between product types. A premium pick & place machine with the rotary RM head, new recognition cameras and an intuitive user interface.

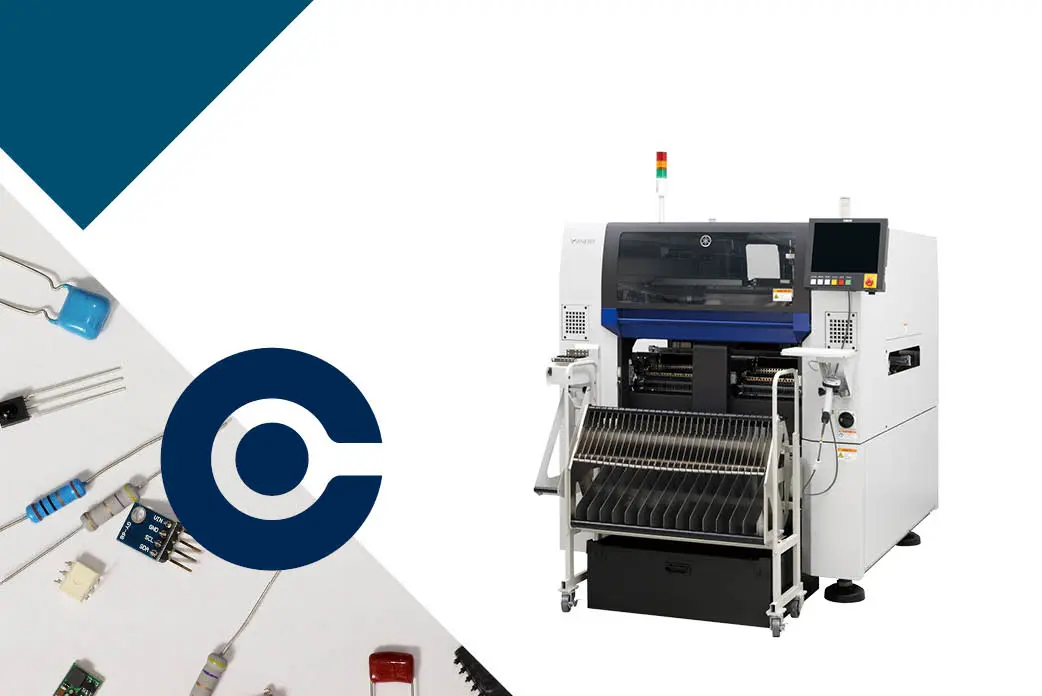

Yamaha YRM10
Premium placement, smaller investment
High speed and versatility at an excellent cost performance. A smart first step into Yamaha placement, or a flexible addition to an existing line.
Price & questions?
Get a straight answer
Not sure which pick & place machine fits your boards, volumes and budget? Talk to an SMT specialist who knows the machines inside out and wants your line to succeed.
Fine-tune your pick & place machine
Built around your boards
Choose the mounting heads, nozzles and feeders that match your components and product mix. Explore the Yamaha configuration options.
Programming & kit-up for a new job
New job, less waiting
Program, verify components and prepare the next job while the line is still running. See how Yamaha's smart tools shorten your pick & place setup.
Yamaha machines handle everything from the:
- tiniest 008004" (0201 metric) chips
- to odd-shaped components
- and large connectors.
With the right mounting heads and nozzles, one Yamaha pick & place machine can cover both complex high-mix assemblies and high-volume runners.
High placement speed, quick changeovers and smart offline software cut setup time.
The machine spends its time placing instead of waiting.
You get more boards per shift without adding pressure on your operators.
Yes. Our in-house service engineers cover Scandinavia and the Baltics.
We handle everything from installation and operator training to machine maintenance, original spare parts and online remote support. Service contract customers get priority.
We also offer comprehensive training for experienced staff and onboarding of new operators, so the know-how stays in your team.
When SMD components are mounted with a Yamaha mounter, you get high accuracy at high speed, even on the smallest chip components. A wide selection of mounting heads and nozzles lets you match the machine to the components on your boards today, and the ones coming tomorrow.
Component placement systems go by several names: pick & place machine, SMT mounter or SMD mounter. Whatever you call it, it is often this machine that decides how fast your whole SMT line can run.
A smooth-running SMT line starts with the right pick & place equipment. Yamaha machines are built to handle changing production demands and integrate easily with the rest of your line.
Key benefits:
- Boards right the first time
Place components down to 008004" (0201 metric) with high accuracy. That means less rework and less scrap. - Delivery dates you can keep
High-speed placement helps you meet tight schedules without compromising quality. - Ready for the next job
Quick changeovers make it easy to fit in prototypes, small batches and new jobs. - Production you can count on
Robust design for long-term performance and minimal downtime.
One partner for the whole line.
A pick & place machine performs best when the rest of the line works with it.
At CORE-emt, we deliver complete SMT lines and the equipment around them, so your printer, inspection, reflow and pick & place machines work together as one.
Maybe you are upgrading a single unit, or maybe you are building a new line.
Either way, our team makes sure everything fits and keeps it running with service, training and original spare parts.
Pick and place articles
Learn more about pick & place assembly
Practical knowledge from the production floor. Our articles cover pick & place assembly, SMT production and component placement, from new machines, smart features and tools to process optimisation and customer cases.
See how other manufacturers use Yamaha equipment to improve accuracy, flexibility and efficiency.
Pick and Place insight articles >
Ready for a smoother SMT line?
See a Yamaha pick & place machine in action, or tell us about your production and let our specialists suggest the right setup.
Future-proof your component placement
Components keep shrinking. A Yamaha pick & place machine supports parts as small as 008004" (0201 metric). It also combines accurate high-speed SMD mounting with Yamaha's user-friendly programming software.
That makes it ready for the boards you build today and the ones you will build tomorrow.
Get it right the first time.
