YAMAHA YRM20 pick and place machine from YAMAHA SMT
Yamaha YRM20 supports 008004" (0201 mm) SMD >

Yamaha YRM20 pick & place

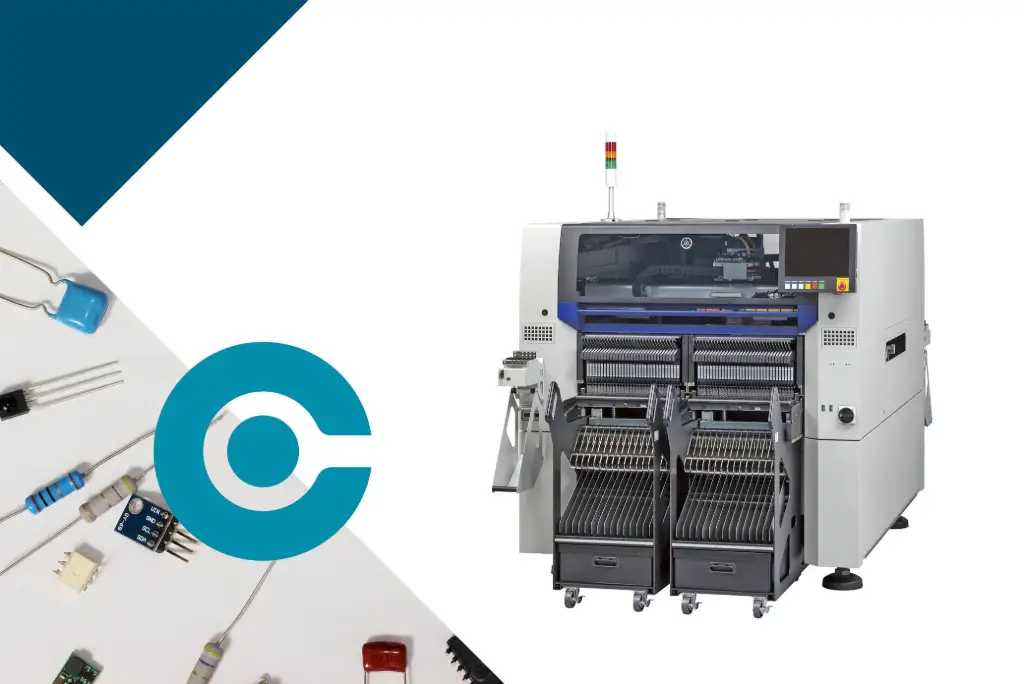

YAMAHA YRM20 Pick and Place machine

YRM20 is YAMAHA SMT's newest pick & place machine. The YRM20 comes with a brand new user interface for improved setup, machine operation and changeovers.

With a new high speed component recognition camera, low impact nozzles and a extraordinary fast rotary RM head that places up to 115.000, the YAMAHA YRM20 is a pick and place machine that will lift productivity in any SMT line. The YRM20 also offers a versatile feeder range, to cover any production needs.

  - 115.000 CPH with RM head / 18 nozzles

About YAMAHA YRM20 pick and place machine

YAMAHA YRM20 - a premium high efficient pick & place

  • PCB´s size  |  dual-stage specifications:

    - 1 PCB conveyor:   L 810 x W 510 mm   -   L 50 x W 50 mm

    - 2 PCB conveyors: L 380 x W 510 mm   -   L 50 x W 50 mm

  • Supports super tiny component size: 008004" imperial (0201 metric). Read more

  • Maximum feeder count: 32 feeders x 4 FES carts = 128 ps. 8 mm feeders

  • Mounting heads:

    - RM rotary head with 18 nozzles
       supports  0201 mm to 12 x 12 mm  |  H 6,5 mm or less

    - HM multi-purpose head with 10 nozzles
      supports 0201 mm to 55 x 100 mm  |  H 15 mm or less

  • 2 beam system

  • Large mounting capability:

    2 beam with RM - 115.000 CPH   ( 78.000 CPH  with IPC 9850 )

    2 beam with HM  - 98.000 CPH   ( 68.000 CPH  with IPC 9850 )

  • New interface for improved operability during setup, production & changeovers

  • Automatic Pin Support according to program

  • Nozzle cleaning station & nozzle maintenance warnings

  • Camera with boosted speed and component recognition

  • FES cart for feeder setup, carry, load and exchange

  • Overdrive motion between the 2 heads.

  • Machine size: L 1.374 mm x W 1.948 mm x H 1.445 mm

  • Machine weigh: 2.250 kg

The YRM20 r pick and place unit works in collaboration with:

YAMAHA YRM20 flyer with specifications can be downloaded here

YAMAHA YRM20

Download the YRM20 brochure with more in depth info
Read more about all the new features, more specifications and measurements of the YAMAHA YRM20 pick and place unit.

Download >



YRM20 in action

See the YRM20 pick & place functions on this video
Get a visual introduction to the newest YAMAHA pick & place machine - the YRM20 model comes with new features and functions.

See YRM20 video >
