YAMAHA Auto Loading Feeder

YAMAHA SMT | Auto Load Feeder | ALF feeder

YAMAHA ALF feeder

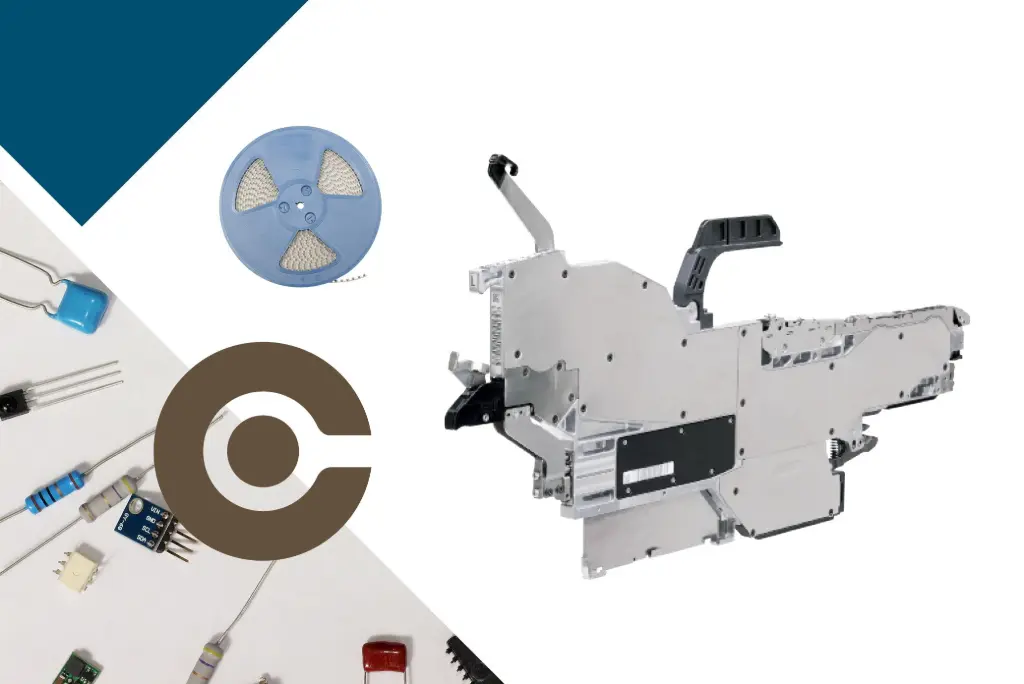

The ALF reel feeder for YAMAHA SMT  pick & Place machines  with  o nly 5 seconds loading time

Supply tape components by merely inserting the tape, all without stopping the machine. You can also replace a feeder during ongoing production.

A smart ‘open at the center’ technique on the ALF feeder is reducing part pick-up errors that happen due to static electricity. The ALF feeder is during production placed in a FES cart and from there the Pick & Place machines nozzles do component pick-up from the ALF feeder. You can use the ALF feeders on YAMAHA YS / YSM / YRM series mounters with tape-cutter.

  - 2 reels can be set at once / loaded simultaneously

YAMAHA ALF Feeder to supply Yamaha modulars

  • ALF Auto Loading Feeder

  • Feeder variations: 4 types of the ALF feeder to accommodate components: 1005 to 3216;
     S  (1005),  M  (1608), L  (2012)  and  LL (3216)

  • Compatible with mounter: YS / YSM series with tape cutter

  • Tape loading time: Approximately 5 sec  (from tape feed start to pickup preparation completion)

  • Loadable minimum tape length: 400 mm or more

  • Compatible tape: Width 8 mm, Maximum thickness 1 mm

  • 8 mm-converted installation occupied width: 12 mm pitch

  • Applicable reel specifications:

    - Feed pitch setting 2 mm / 4 mm

    - Reel width 14.4 mm or less, φ382 mm or less

    - When using applicable reel holder, Reel width 13.6 mm or less, φ178 mm or less.

  • External dimension (excluding projections): L 549 x W 11.5 x H 278 mm

  • Weight: Approx. 1.50 kg

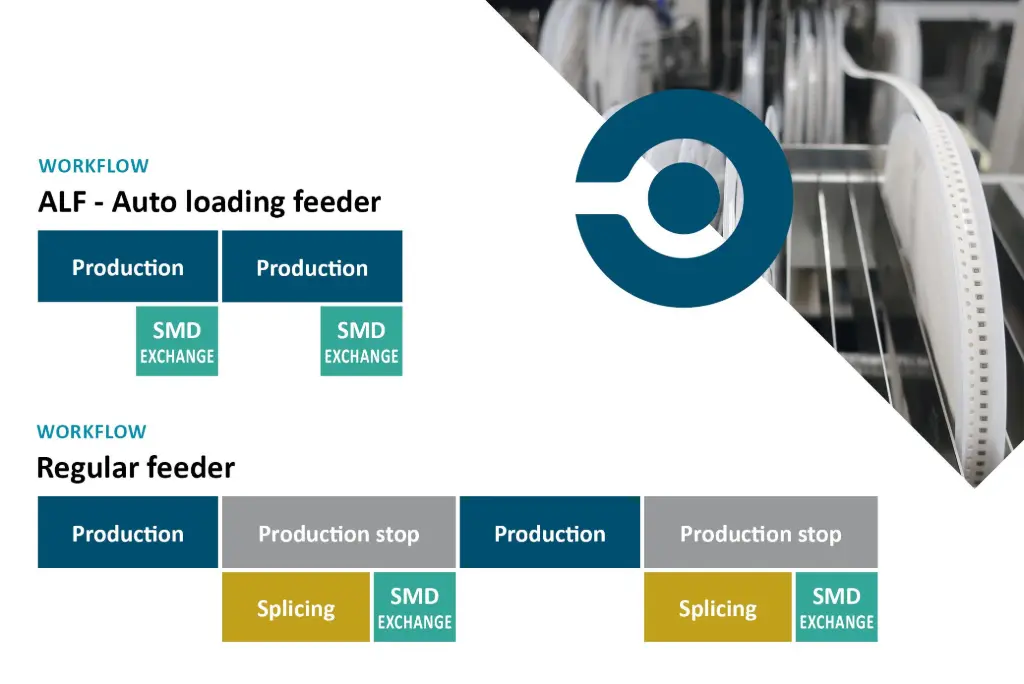

Workflow with YAMAHA Auto Loading Feeder and a regular feeder

Load 2 reels simultaneously in the ALF feeder

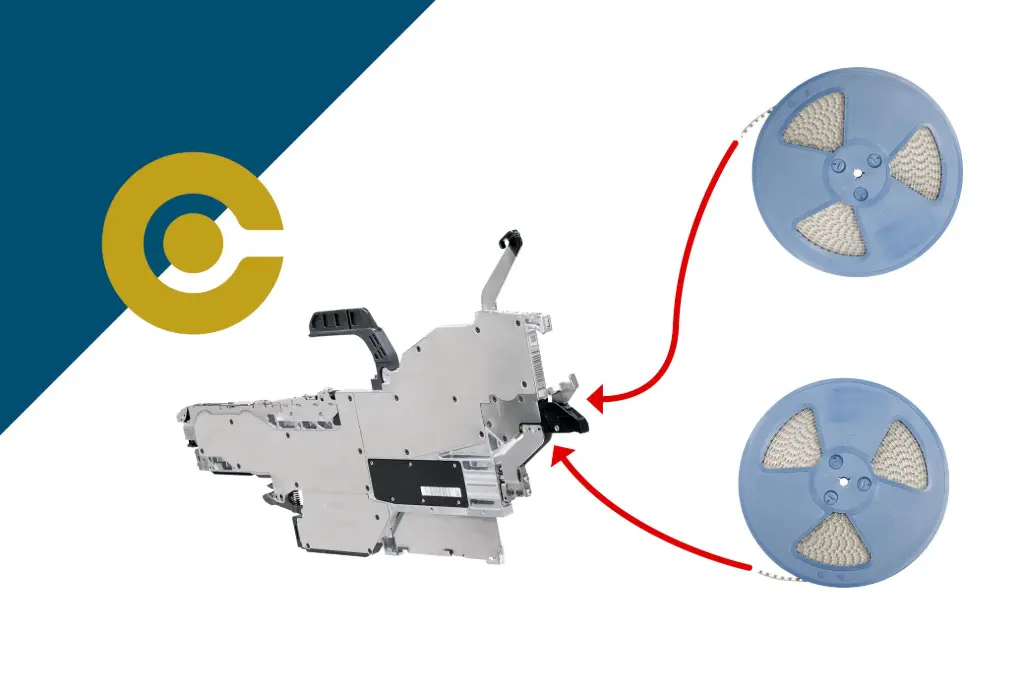

YAMAHA ALF feeder - 2 reels can be set at once

YAMAHA ALF feeder spec sheet to download

Yamaha ALF feeder spec

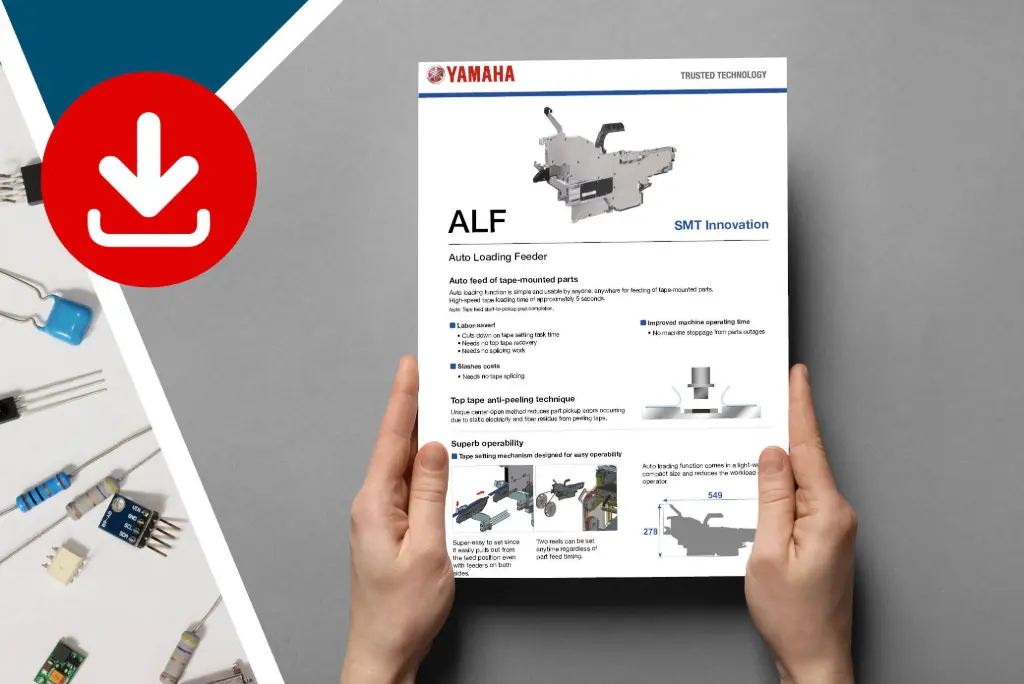

Download datasheet on ALF feeder | If you need the spec sheet to download or to print with more information on the YAMAHA Auto Loading Feeder (ALF) click on the download bottom below.
