SMT Showroom & lounge
See the machines and systems behind PCB assembly production in our SMT showroom
- and talk each process and unit through with specialists who know production
Planning a new SMT line, replacing a bottleneck machine or looking for smarter ways to handle components?
In our SMT showroom you see the equipment up close and running – typically we display one unit of each machine type, covering everything from incoming materials and SMD storage to solder printing, pick & place, inspection and hand soldering. And you get straight answers from people who know PCB assembly from the production floor.

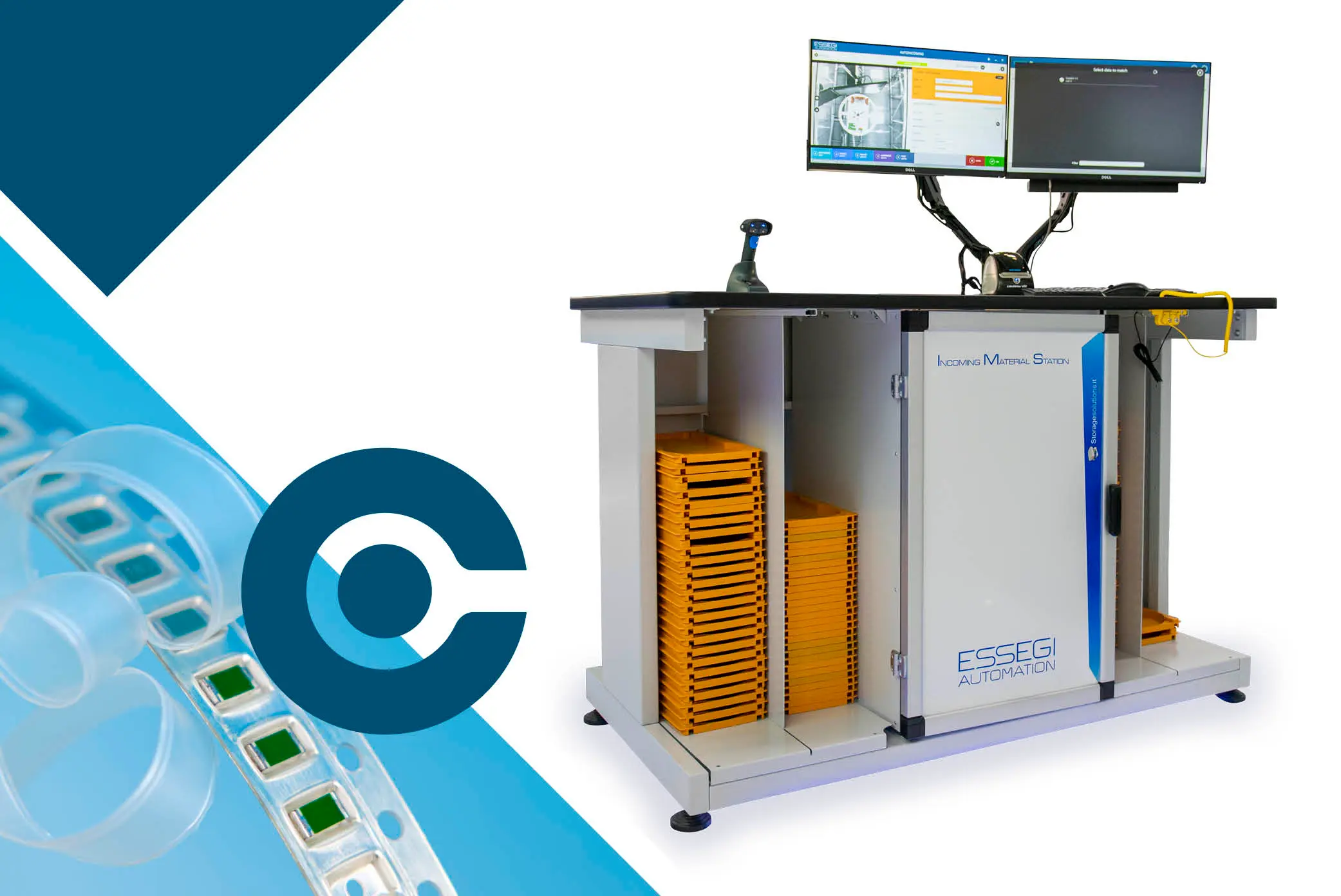

Handle incoming materials | ESSEGI incoming station
Get every new reel registered, labelled and ready for storage in one smooth flow. The ESSEGI material incoming station in our SMT showroom shows how smart SMD logistics starts the moment the goods arrive.

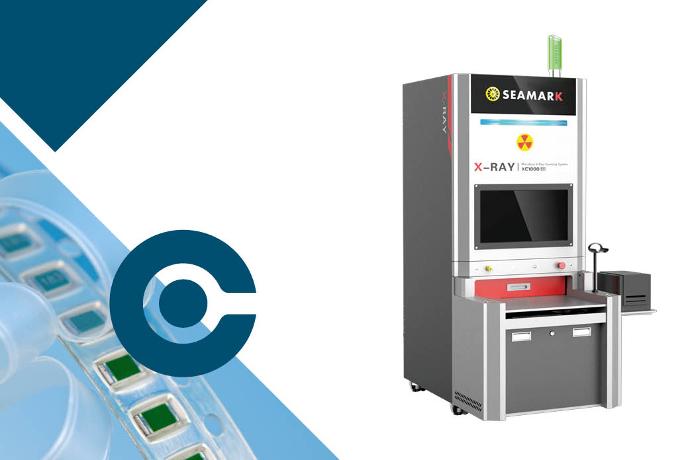

SMD x-ray counter | Seamark XC 1000e
Know exactly how many components you have -without opening a single reel.
In the SMT showroom you can try the compact, mobile XC1000e with its manual front drawer and small footprint.

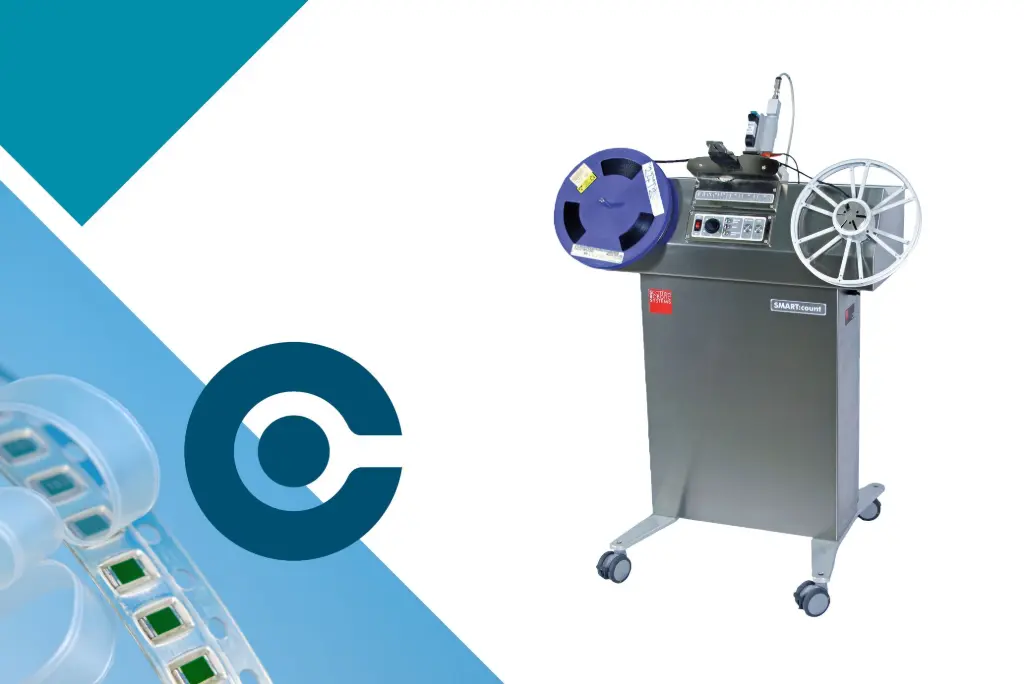

SMD reel counter | SMART:count
Count the reel and print the quantity on the reel tape in one step.
SMART:count saves time on stock-taking and keeps your inventory numbers trustworthy.

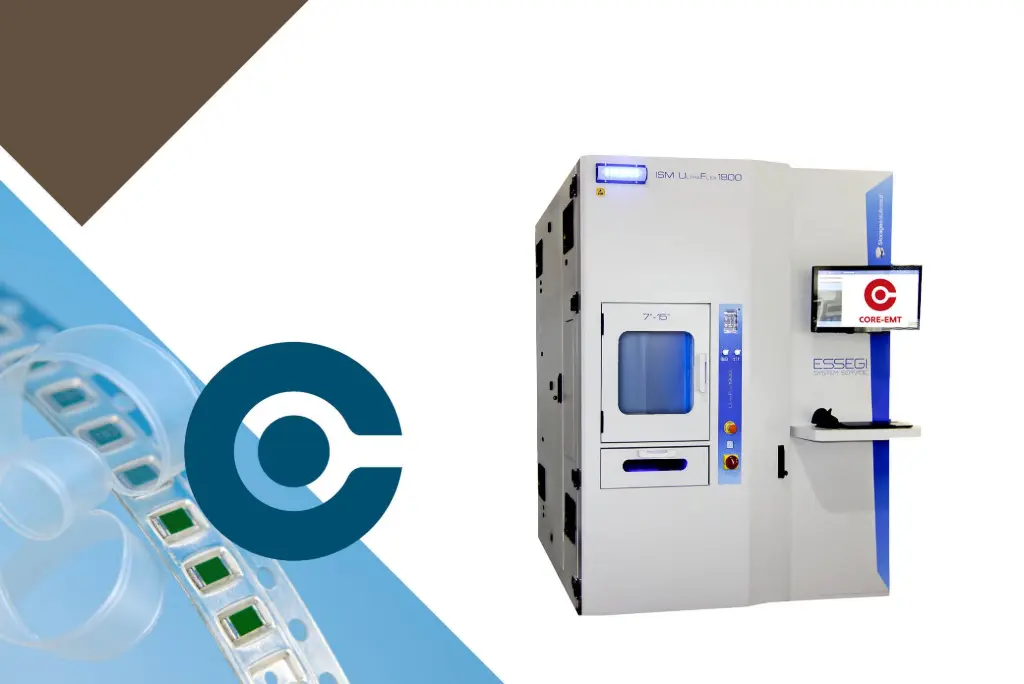

SMD storage towers | ESSEGI ISM 1800
Faster picking, fewer errors and more free floor space. Watch the ESSEGI storage tower deliver the reels for the next job - a logistics upgrade you notice from day one.
Kit-up for a new job | Yamaha setup station
Prepare the next job while the line keeps running. The Yamaha setup station in our SMT showroom shows how operators kit up offline, so changeovers get shorter and the line spends more time producing.

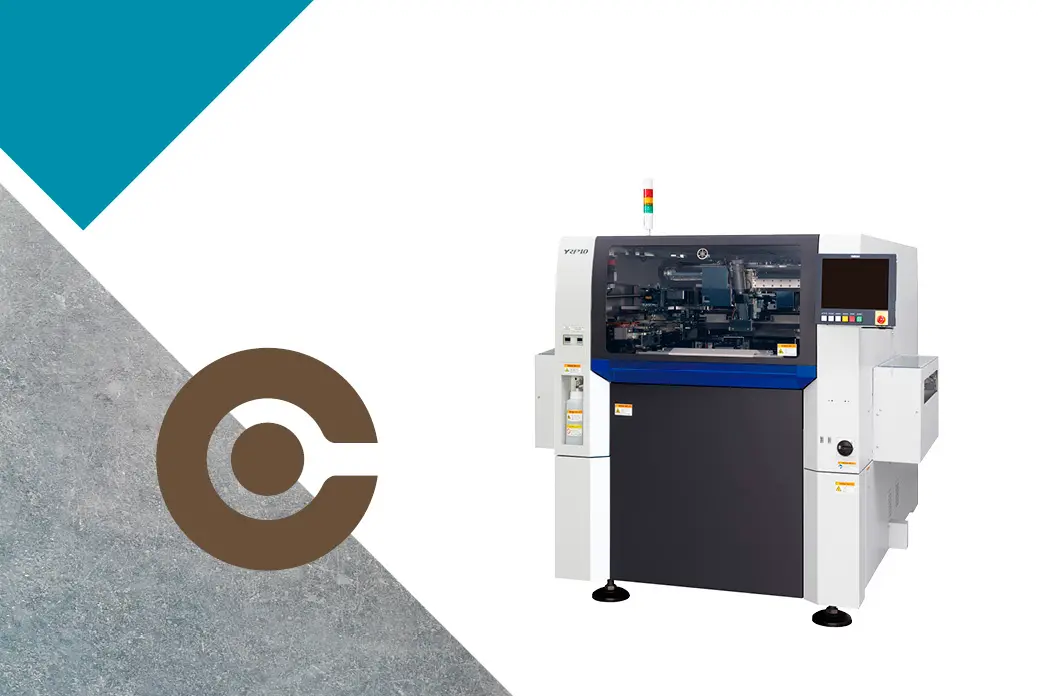

Solder printer | Yamaha YRP10
Good solder joints start with a stable print. Learn in the SMT showroom how the YRP10 screen printer combines precision and speed for repeatable solder paste results, board after board.

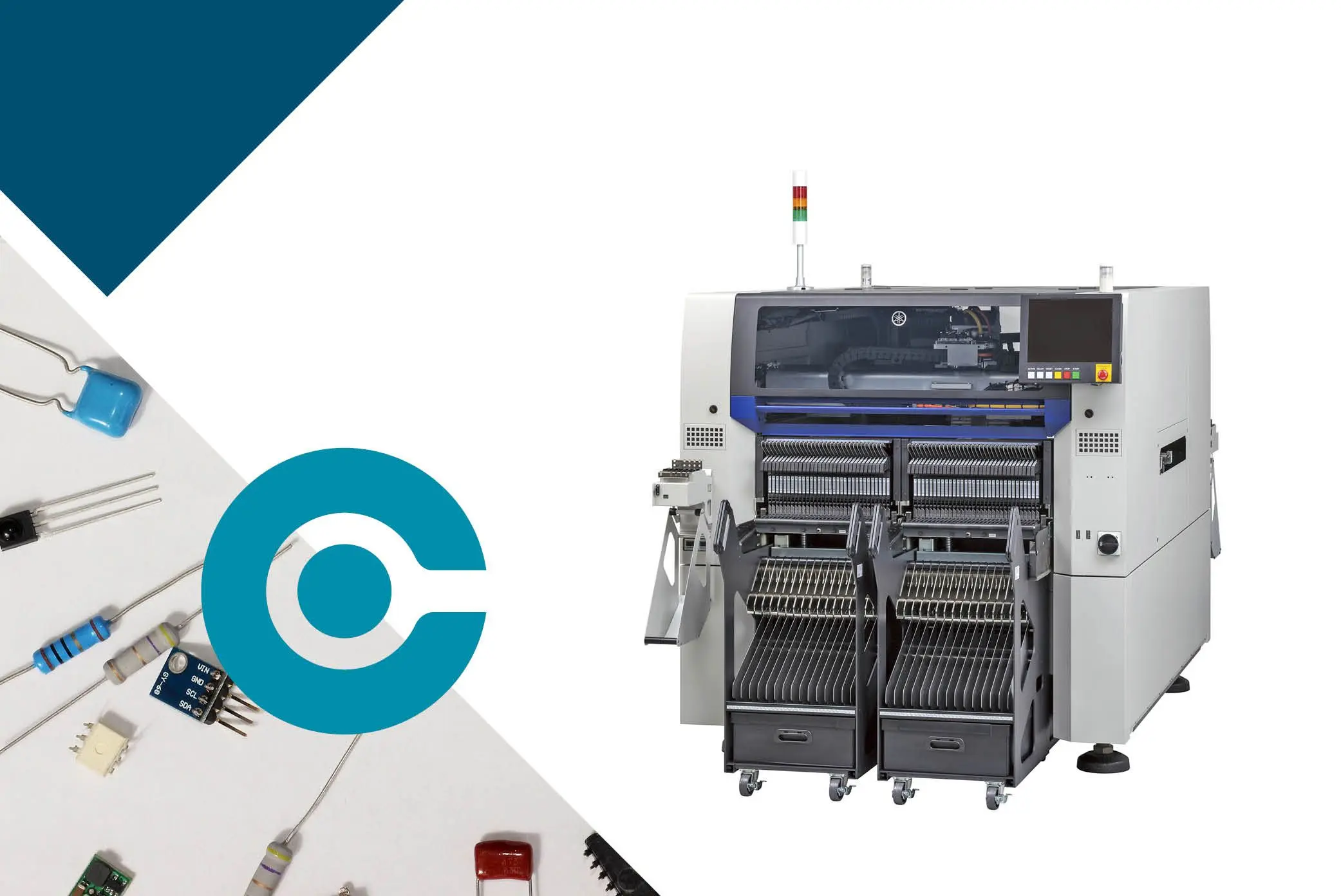

Pick & Place | Yamaha YRM20
High output without giving up flexibility. The YRM20 mounts up to 115,000 CPH and is built for productive, flexible component placement across many different jobs. See it run in the SMT showroom.
Visit the showroom | Book a showroom tour
See it all in one visit. Walk through the SMT showroom with an SMT specialist and get answers to the questions from your own production and updated on the new SMT technology.

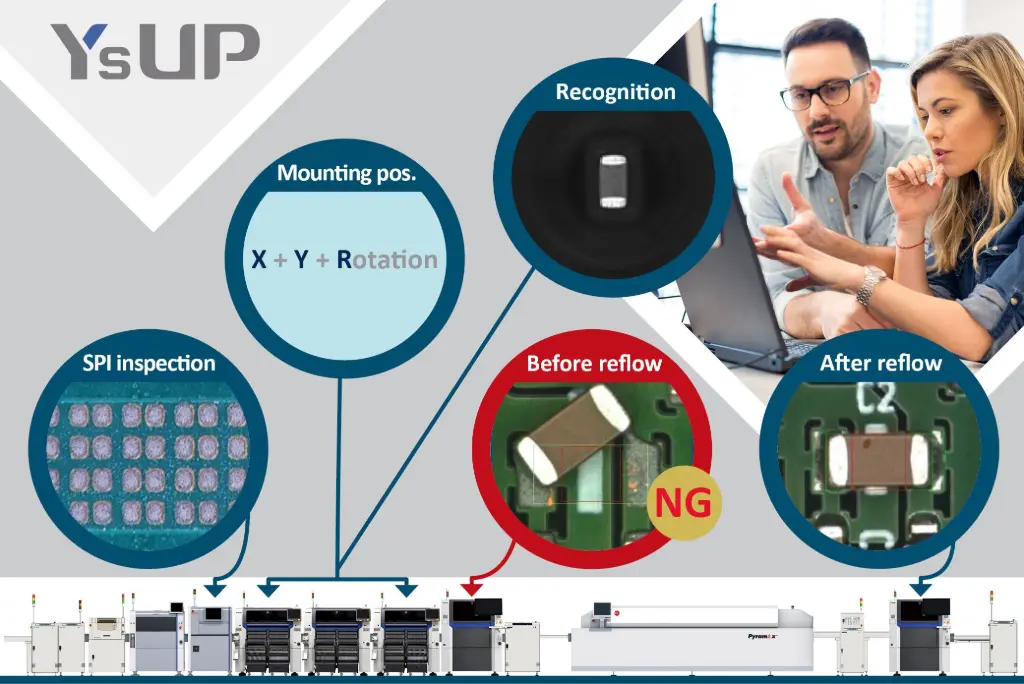

SMT line software | Yamaha SMT software
Connect machines, traceability, smart AI inspection tools and so much more. In the SMT showroom, you can get an introduction to the Yamaha software packages - or dive into a single tool that solves your challenge.
Soldering tools | JBC soldering equipment
The right tip makes rework faster and safer for the board. In the SMT showroom you can take a close look at a wide range of JBC soldering stations, tips and tools for hand soldering and repair.
PCB microscope | Digital microscope
Spot the defect before your customer does.
Try a digital microscope in the SMT showroom and see how it supports quality departments, repair benches and laboratories.
ESD workstation | Reeco ESD tables & workbenches
A workstation that fits both the job and the operator.
See two Reeco ESD worktables - and design your own in our online table configurator.

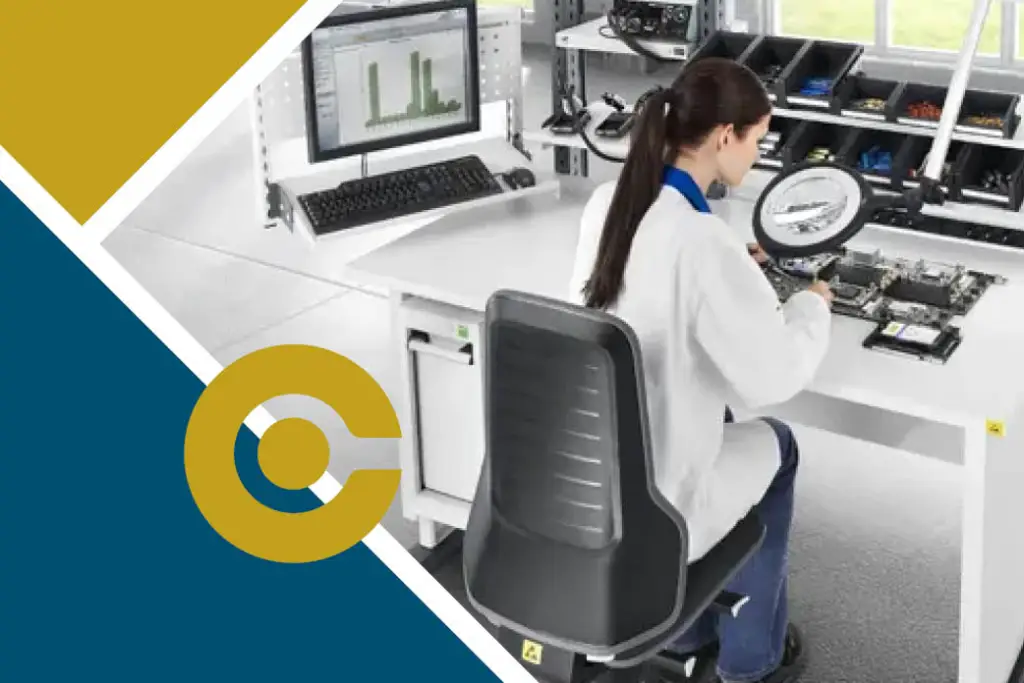

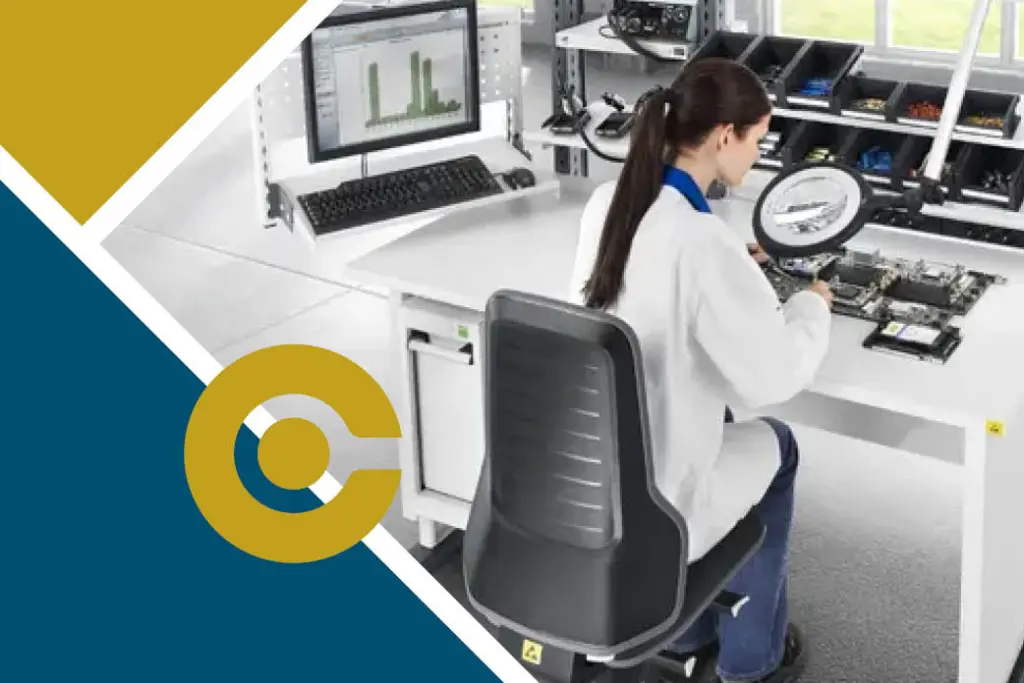

ESD chairs | Bimos work chairs
Your team sits on them all day, so try before you choose. Take a seat in several bimos chairs - ESD chairs and work chairs for production, lab and office.
Why visit our SMT showroom?
Datasheets and videos only tell half the story
In our SMT showroom the machines and line supporting units on display are set up to run a demonstration, so you can see them in action, ask questions along the way and get a real feel for each step – from the moment a reel arrives at the factory until the PCB assembly is AOI inspected.
That makes it much easier to picture how the equipment would fit into your own production, guidance to compare options and make a confident decision.
Whether you are an OEM with in-house electronics production or an EMS provider building for many customers, a visit to the SMT showroom is worth your time if you are:
- Planning a new SMT line or adding capacity
- Replacing an older solder printer or pick & place machine
- Fighting long changeovers, material shortages or picking errors
- Looking to improve inspection, rework or hand-soldering stations
- Bringing colleagues or management along to align before an investment
We will guide you through the SMT showroom is an SMT specialist – not a script.
We know the daily reality of PCB assembly: tight deadlines, high-mix jobs, operators who need tools that simply work. So we focus on your challenges and give you practical, technical advice you can take straight back to the line.
We would rather help you find the right solution than sell you the wrong one. That is why we are confident you will leave with a good experience - and new ideas.
After the tour, sit down in the lounge next to our SMT showroom over a cup of coffee.
It is the perfect place to talk through your line layout, bottlenecks, material flow and next steps – at your pace and without pressure.
Many good SMT solutions start with exactly that kind of conversation.

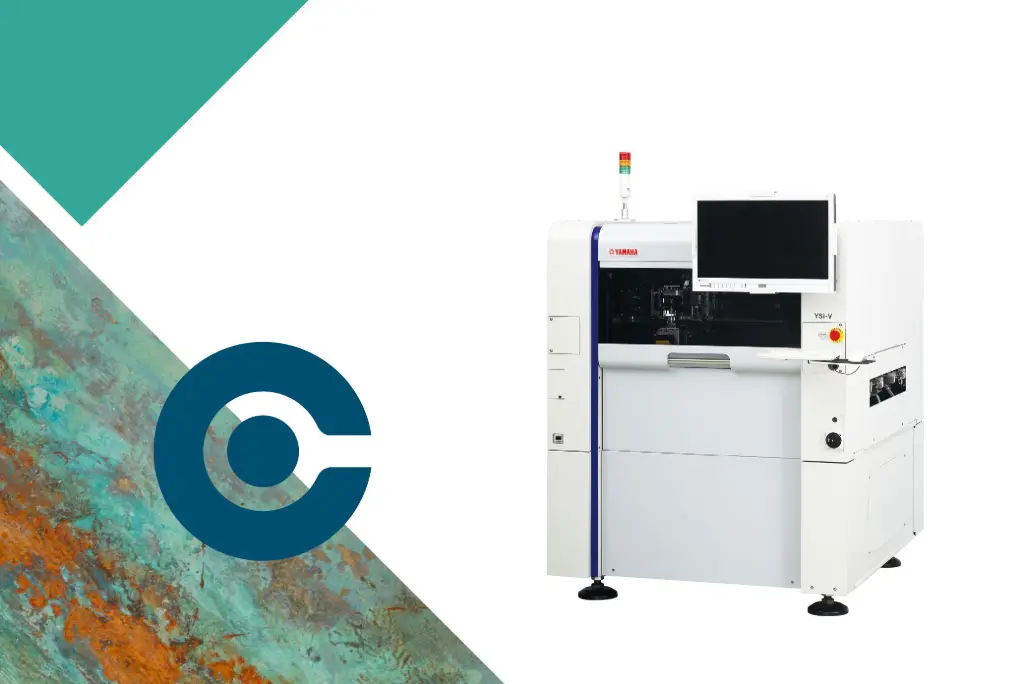

Our SMT showroom displays a wide selection of equipment, including Yamaha screen printers, pick & place machines, storage solutions, stencil cleaners, AOI, count & print units and X-ray component counters.
Listed on this page is what is on display at the moment.
We typically display one unit of each machine type, and the units on the showroom floor change over time.
Let us be prepared and give you the best experience.
So let us know what you would like to see before you visit – then we can plan the tour around your production.
Ready to see your next SMT solution?
You are always welcome.
Book a visit to our SMT showroom, bring your questions and your team, and let's find out what could lift your production.
Yamaha virtual SMT showroom
Can't visit in person right now? Yamaha offers two virtual SMT showrooms: one for its newest platform, the YRM series, and one for the proven YSM series. Explore the equipment from your desk – a great warm-up before you visit our physical SMT showroom.
