YAMAHA YRP10 screen printer

Premium Yamaha solder printer

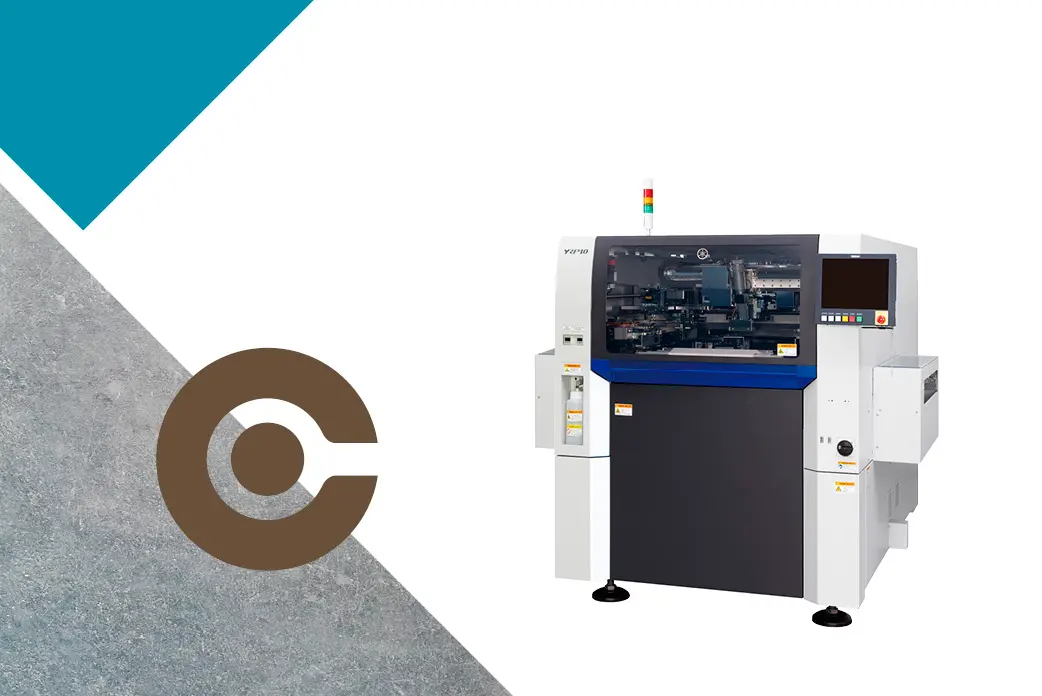

Yamaha YRP10 screen printer

This solder printer delivers on high speed accurate quality printing due to a combination of the Yamaha's updated 'Swing single squeegee', stencil vacuum system, auto cleaning system and a print stability system.

The YRP10 screen printer also comes with an optimized movement layout and is possible to configurate it for single-lane or dual-lane production.

Read full YRP10 technical article  or see all YAMAHA solder printers here.

  - Cycle time: 10 sec - incl. transport, stencil cleaning & printing

About YAMAHA YRP10 Screen Printer premium Yamaha solder printer

  • High-speed solder printing capability:

    - 10 sec/cycle by standard printing under optimum condition, including board transfer time, cleaning and printing.
    - 6 sec/cycle under optimum conditions for board transfer time & cleaning.

  • Printing accuracy (±6 σ): ±16 µm Cpk≥2.0
  • Positioning repeat-ability accuracy: (±6 σ): ±8µm Cp ≥ 2.0

  • Stencils up to L 750 x  W 750 mm

  • Applicable PCB:
    - Single lane: L 510 x W 510 mm
    - dual lane: L 420 x W 330 mm

  • Printing head info: 3S head ( 3S = Swing Single Squeegee )

    Each job program sets the squeegee attack angle & speed to the ideal setup that provide optimal printing conditions.
    Also matching the solder paste being used.

  • Options include e.g.:

    - 2D print inspection camera

     - PSC system (PSC: Print Stability Control)

     - Automatic stencil exchange

    - Automatic push-up pin exchange function

    - Automatic solder transfer function

  • Software: YAMAHA YsUP factory tools

  • Machine size:
    - single lane: L 1.640 mm x W 1.840 mm x H 1.525 mm
    - dual lane: L 3.560 mm x W 2.300 mm x H 1.525 mm

  • Machine weigh: approx. 1.710 kg
    Traverse conveyor: approx. 450 kg

Read the technical article from YAMAHA SMT about how the YRP10 Screen Printer

YAMAHA YRP10 screen printer brochure to download

Download the YRP10 brochure

Discover comprehensive details about the advanced smart solder printing features and customizable options - e,g. the dual-lane option that is available on the Yamaha YRP10 solder printer.


Video presentation of Yamaha YRP10

Come on an up-close journey seeing the YRP10 solder printers many automatic functions, e.g. push-up pin exchange, stencil replacement, solder refill, solder transfer, new 3S squeegee, etc.
