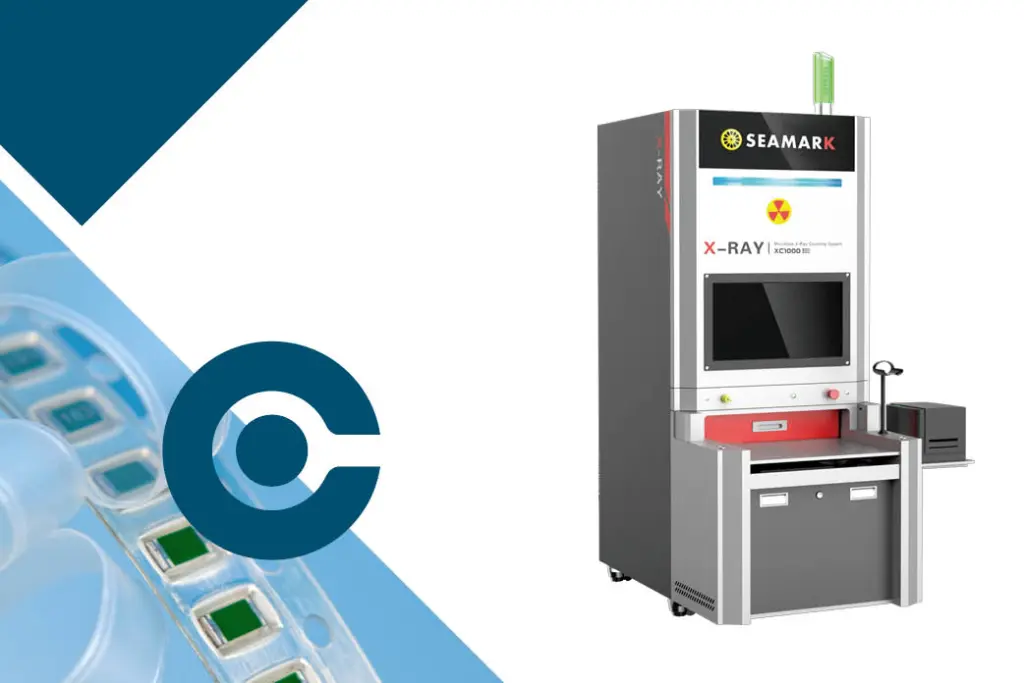

Seamark XC1000 x-ray component counter
The XC1000 offline X-ray counter is designed for efficiency, accuracy, and ease of use. With AI-powered algorithms, it counts SMD components—including moisture-proof bags and JEDEC trays—automatically and with 99.99% accuracy.
✔ No unpacking required – count reels without opening them
✔ Smart labeling – auto-recognition ensures the correct label for every reel
✔ Compact & ergonomic – easy to operate, move and relocate
✔ Seamless integration – connects with MES/ERP/WMS for real-time data exchange
- Inspection time: 12-15 sec 4 reels counted simultaneously
About Seamark XC1000 x-ray component counter
-
Inspection:
Accuracy: 99,99%
Smallest SMD detection: 01005" imperial / 0402 metric
Inspects in 3 modes: 1 reel - 4 reel - only one mode -
X-ray tube:
Voltage: 30 - 80 kV
Power: 56W
-
X-ray flat panel detector:
Size: 427 x 427 mm
Pixel matrix 3072 x 3072
Resolution: 3.6 Lp/mm
AD conversion bit: 16 bits -
Supported reels sizes
Reel max size: 4 reels - 7" / 178 mm
Reel max size: 1 reel - 15" / 381 mm
Reel height: 5 - 80 mm
-
Easy access & labeling
Component entry: front panel door
Screen: non-touch screen
Label printer: on the front
Barcode reader: on the front -
Machine size: 800 x 1.280 x 2.200 mm
-
Machine weight: 790 kg
Performance & automation
• Count time: 1 reel approx. 7 - 10 seconds
• Count time:
4 reels
approx. 12 - 15 seconds
•
High Accuracy: 99.99%
•
Smallest detectable component: 01005" (imperial) / 0402 (metric)
• No damage to components or reels during counting
• MES / ERP / MES integration
Safety & reliability
• Real-time external radiation leakage detector (<1 µ Sv /h)
• Ergonomic design – operator sits comfortably with an easy view of the counter screen
