AOI vision | Automated Optical inspection
4 direction optical inspection, 3D optical inspection and 2D Optical inspection.
More than double the AOI inspection capability than ordinary AOI inspection systems.

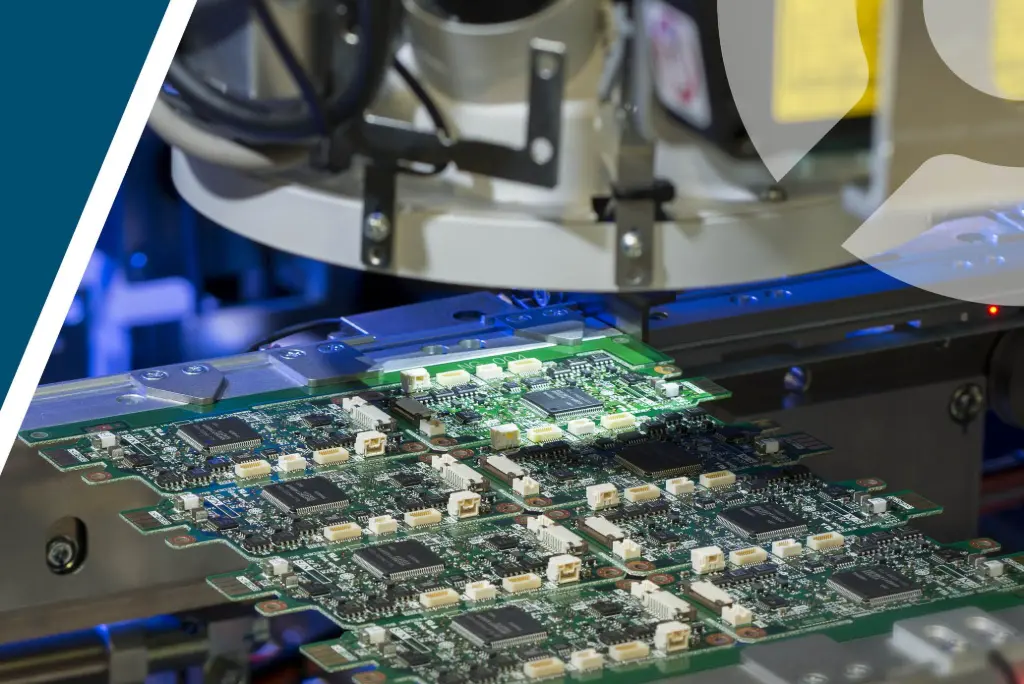

Components status after mounting + components and solder paste status after reflow soldering. Mobile judge is available with YSi-V AOI vision.
- AOI vision: 3 functions in 1 machine

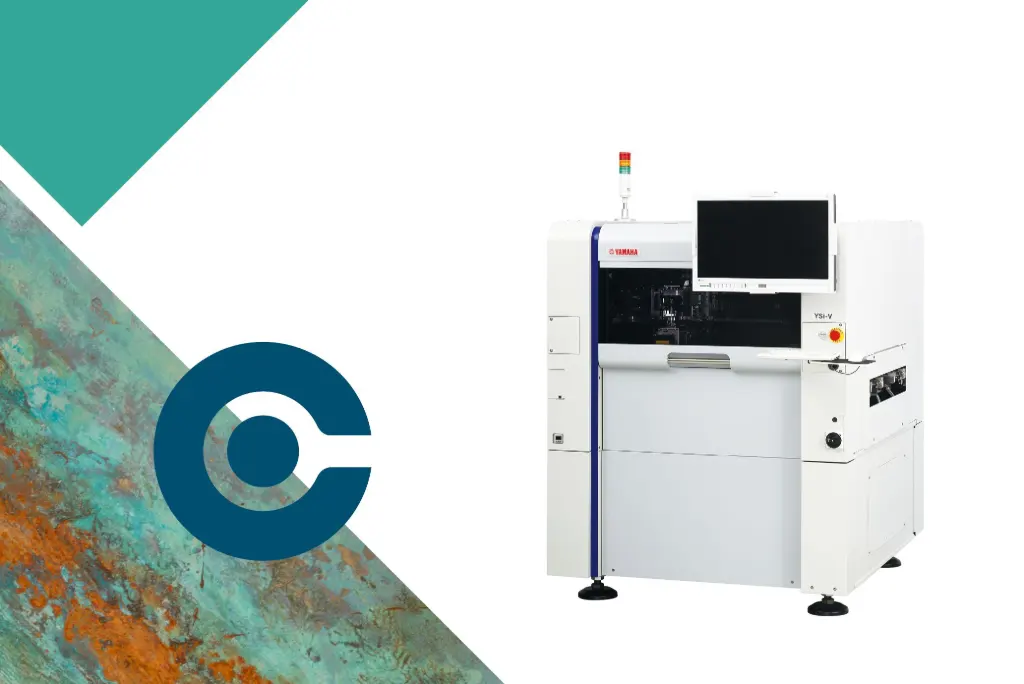

About the AOI vision: YSi-V
Automated Optical Inspection at is best with YSi-V
2D High-speed and high-resolution by 5 methods: Brightness, infrared, color, shape and laser
3D Height, and sloped surface by slope and height of surface
3-dimensional inspections (option)
4 direction = 4-way angular camera (option)
Utilizes a dual lane system (option)
Applicable PCB L 610 x W 560 mm (maximum) to L 50 x W 50 mm (minimum)
Applicable for L 750 mm longer PCB (Option)
Machine size: L 1.252 mm x W 1.497 mm x H 1.550 mm
Machine weigh: 1.300 kg

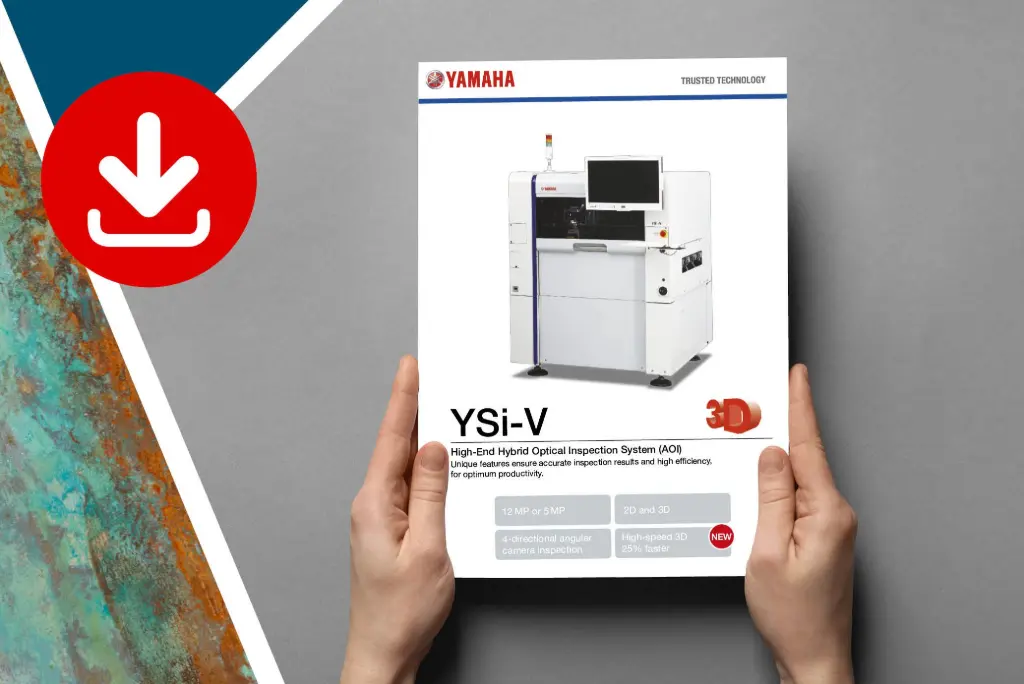

YSi-V spec sheet
Download datasheet on YSi-V
YSi-V spec sheet to download or to print with more information on the YAMAHA YSi-V inspection unit.
Download to see more.
Automated Optical Inspection
See this YSi-V video to really get an understandig on how the YSi-V (AOI) machine works.
Learn about AOI inspection.
Steen can help you
AOI Inspection equipment and Inspection machinery are what we excel in. Do you have any questions about SMT inspection contact us.
