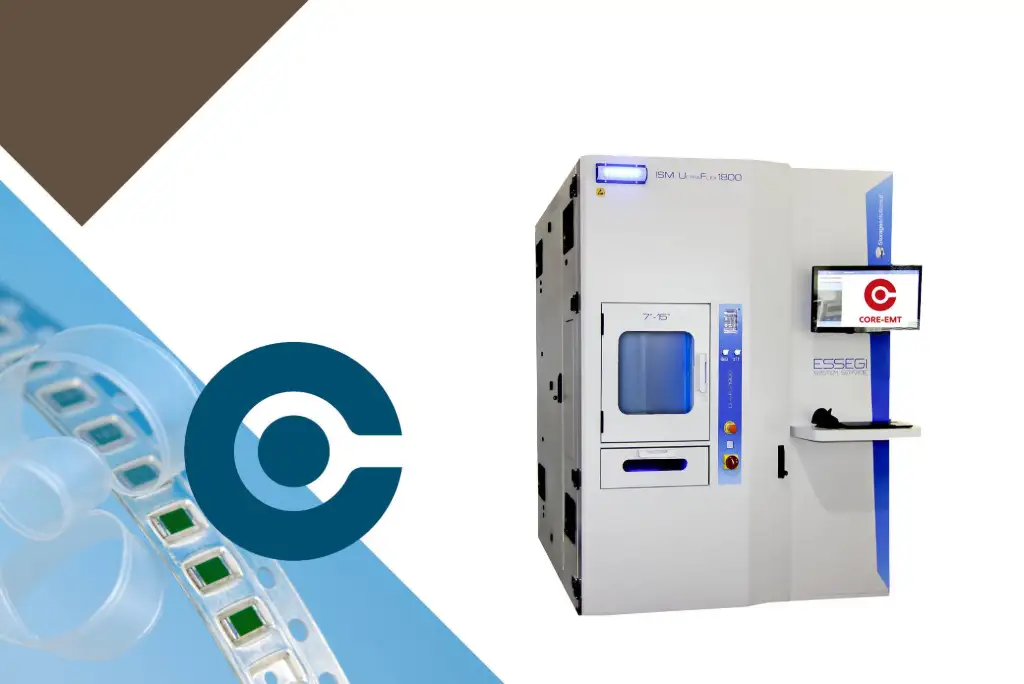

ISM 1800 ultraflex storage tower
SMD inventory, storage & management
The ISM 1800 can store up to 1,832 7" SMD reels, making it easy to keep a large number of components organised and ready for use.
Inside the storage solutions 1800 tower, single trays and double-reel trays hold the reels securely and keep them neatly organised inside the smd storage solutions tower.
Each reel is identified with a barcode, helping ensure accurate, error-free SMD handling when preparing your next job. That is smart smd reel management.
Saves you 70% storage space | Storage software & integration >
More ISM 1800 ultraflex storage tower info
Storage Solution tower ISM 1800
- Maximum capacity 1832 reels with 7" reels
- height of the reels freely configurable up to 88 mm.
-
Touch screen
-
Humidity control: Optional (HCU + FRU available)
-
Machine size: W 1,749 m x D 1,620 m
- Operative height: 2,28 m - adjustable 110 mm feet
- Transport height: 2,21 m
-
Machine weight: 826 kg (empty) | Full of cases 1.105 kg.
- Storage Solutions server software & integration >
Download ISM1800 brochure below to find more information about this and other ultraflex storage towers.
ISM 1800 storage tower capacity examples
- 1.832 reels | 7” reel*
-
452 reels | 13/15” reel*
- 1036 + 200 reels | 7” + 13/15” reels*
*Note that the example is made with different reels heights (up til 88 mm as that is the maximum tray height).

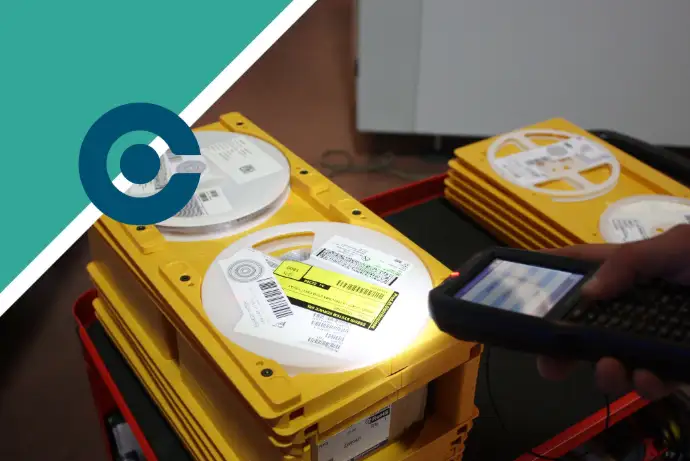

PDA from ISM 1800 from essegi used to verify that the operator is picking the right SMD reels after reel / SMD material extraction in double casing.

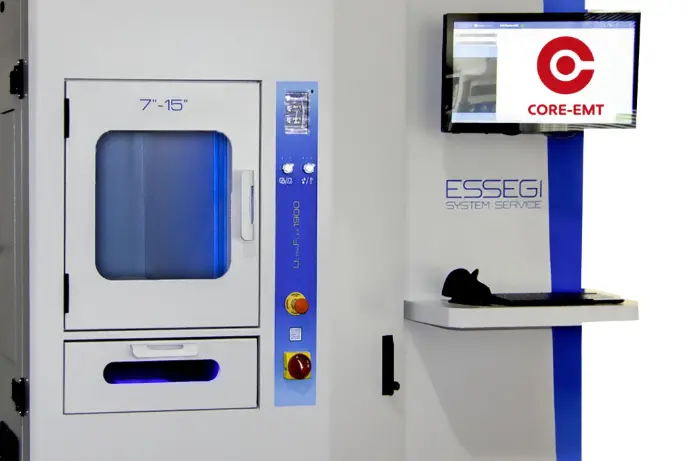

A close up of the front of Essegi storage solutions tower 1800
Download ultraflex ISM 1800 brochure
Want to know more about the ISM 1800? Dive into the brochure for specs, workflow and a closer look at how the SMD storage solution works.
You can also compare the ISM 1800 with Essegi’s other reel storage towers to find the setup that fits your needs.
Reel extraction video demo
See the ISM 1800 Ultraflex tower in action, picking SMD components at highest speed.
In this video, you’re actually seeing the 1800’s bigger brother - the ISM 3600.
It has a larger capacity, but works in the same way as the ISM 1800.
Ultraflex 1800 price or questions?
Looking for the right SMD storage solution? The ISM 1800 Ultraflex tower is part of Essegi’s flexible storage system, designed to make reel storage and handling easier.
Have questions, need more information or want a price? Get in touch - we’re happy to help you find the right solution for your setup.
