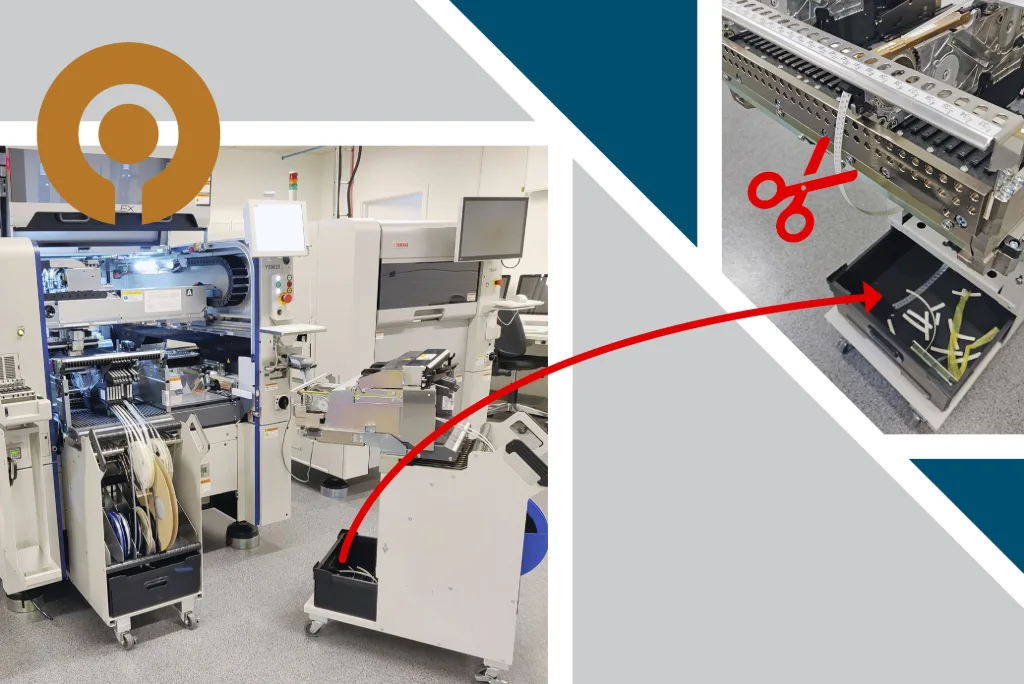

YAMAHA FES cart with cut tape waste container

Feeder cart for YAMAHA YSM20 & YRM20

YAMAHA FES cart

So much more than just a cart for your feeders. With the YAMAHA FES carts you have an excellent way to setup and load feeders on your a setup stations for the YRM20 mounter and the  YSM20 Pick & Place machines with bulletproof setup software to kit up for a new job.

A FES cart gives you fast & easy feeder handling with less heavy lifting for the operator. The FES cart also have a waste container at the bottom, that collects the automatically cut of tape from the reels - all while production is running.

  - The FES feeder cart is on wheels = Less heavy lifting

About YAMAHA FES cart models

YRM20 FES   Feeder Exchange System
  • FES cart for feeders on the YRM20 models
  • YAMAHA feeder cart is on wheels
  • Each FES cart can hold 32 reels (8 mm)
    The YSM20 Pick & Place can hold 2 carts on each side = 4 carts x 32 reels = 128 (8 mm) reels in total.
  • External dimension: approx.  L 411 x W 900 x H 940 mm
  • Weight: approx. 75 kg
YSM20 FES   Feeder Exchange System
  • FES cart for feeders on the YSM20 models
  • YAMAHA feeder cart is on wheels
  • Each FES cart can hold 32 reels (8 mm)
    The YSM20 Pick & Place can hold 2 carts on each side = 4 carts x 32 reels = 128 (8 mm) reels in total.
  • External dimension: approx.  L 445 x W 800 x H 940 mm
  • Weight: approx. 70 kg

YRM20 FES   Feeder Exchange System

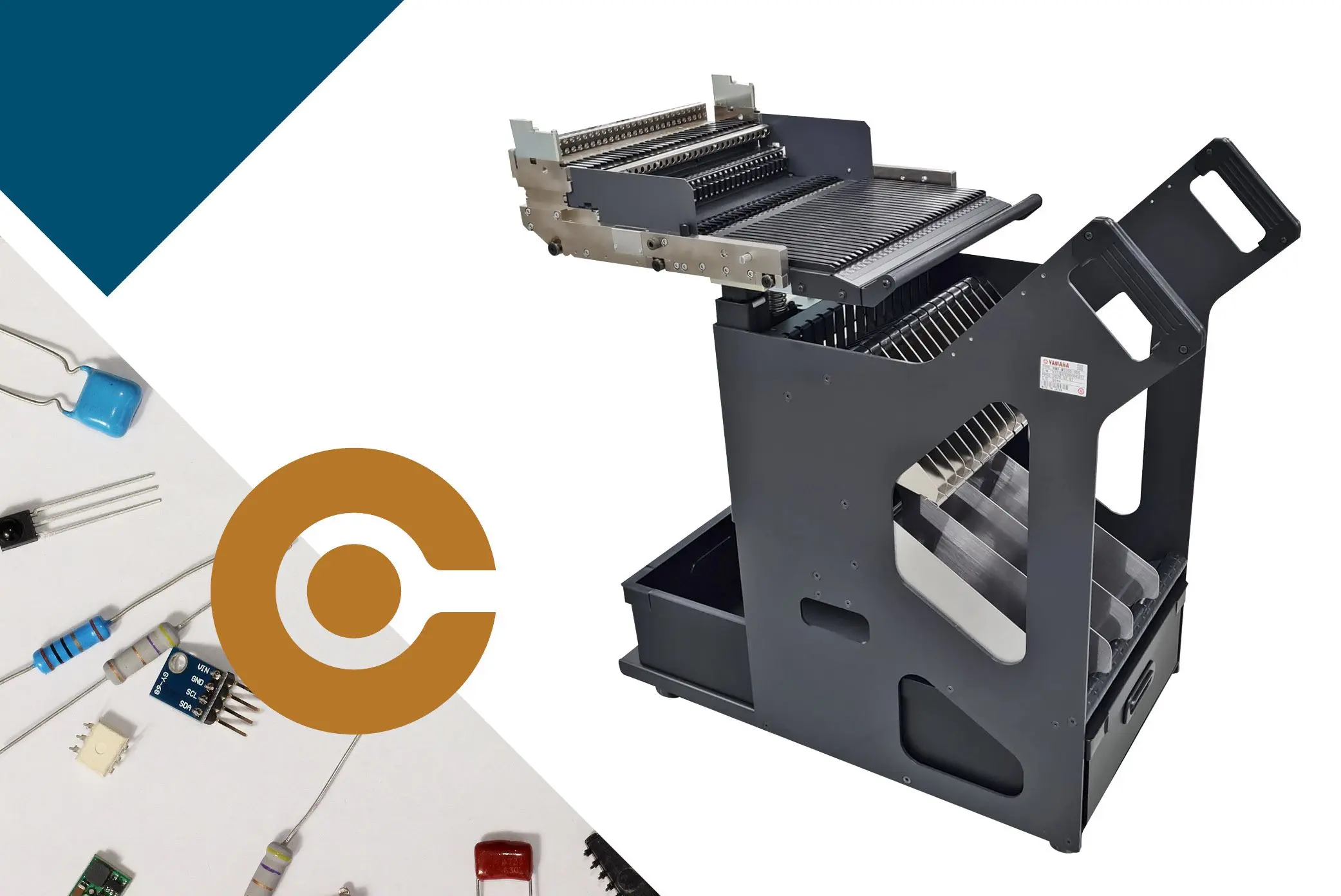

YAMAHA YRM20 cart for feeders called YRM FES cart

YSM20 FES   Feeder Exchange System

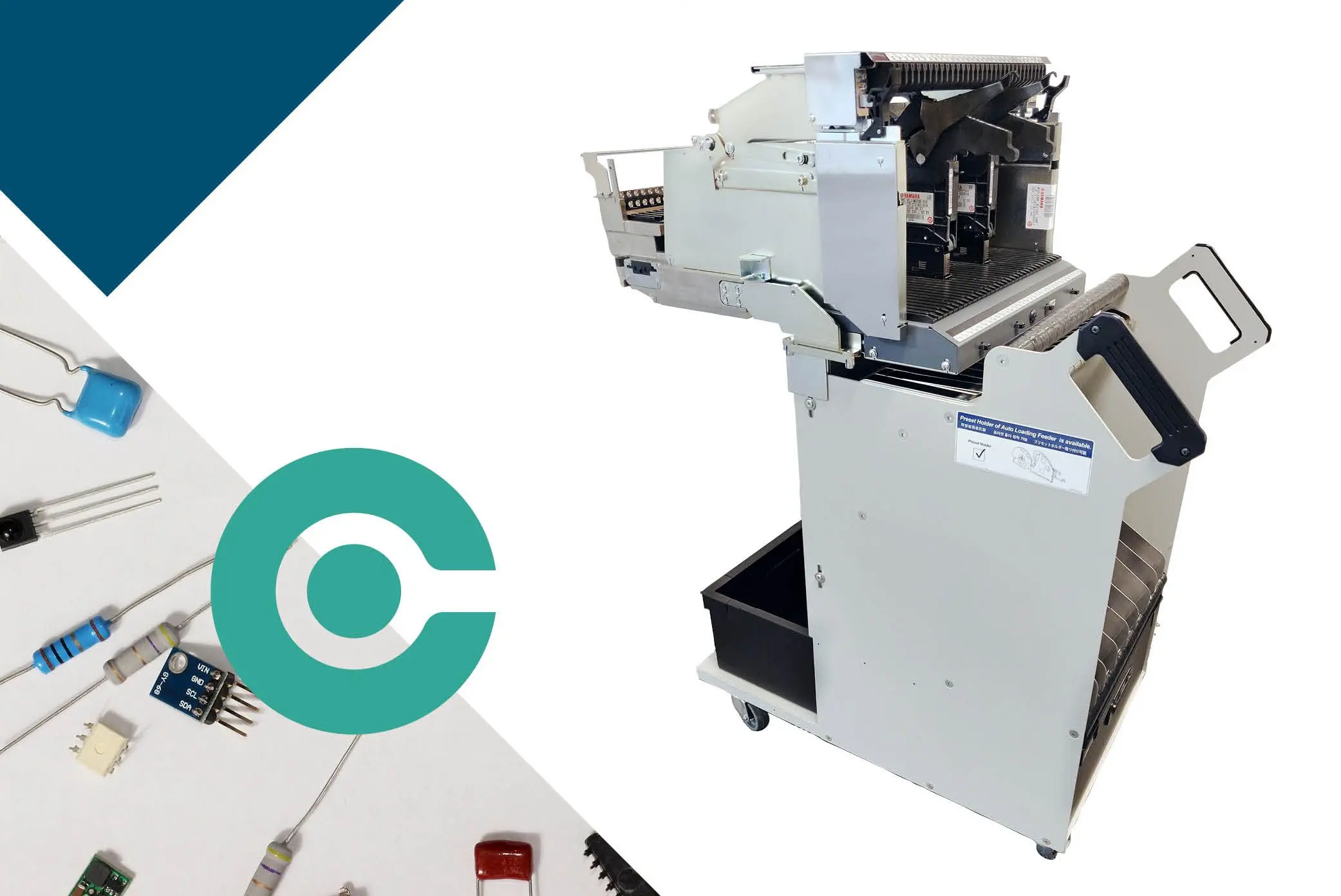

YAMAHA YSM20 FES cart ensures no heavy lifting for operator

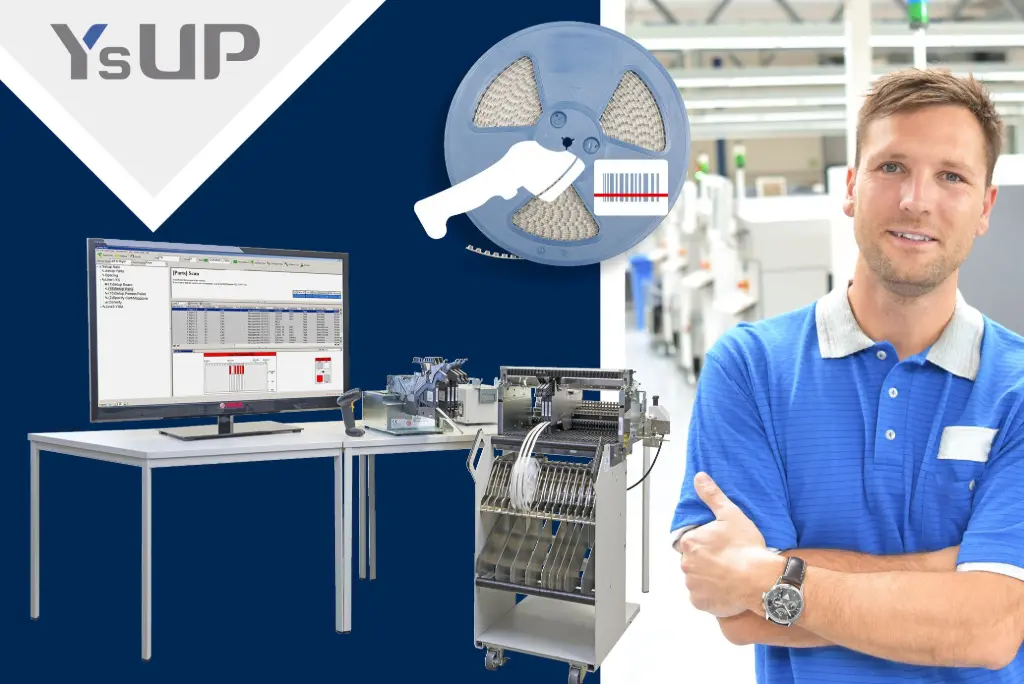

The YAMAHA FES cart works together with the yamaha setup station

FES cart, setup station & software

Setup for a new job is perfectly done with YAMAHA poduction assistance software in combination with setup station for verification before reel is placed into the FES cart.

Setup assistance software >



Video introduction of Yamaha FES cart

See how it works |  YAMAHA SMT feeder setup and transport of feeders on the FES cart. Set up for a new job with no heavy lifting and easy transport.

FES cart video >

FES feeder cart price or questions?

Ask about the FES feeder cart | The YAMAHA feeder storage cart is both for production setup and to feed the YSM20 pick and place when the SMT line is up & running.
