Flexible component mounting with YAMAHA SMT mounting heads
Our Pick & Place mounting heads supports a wide range of various components sizes and heights. We provide you with the mounting flexibility needed in a modern electronics company.
Simply, setup your YAMAHA Pick & Place machine with the mounting head / heads that supports your production line, to enable the output and quality you desire.

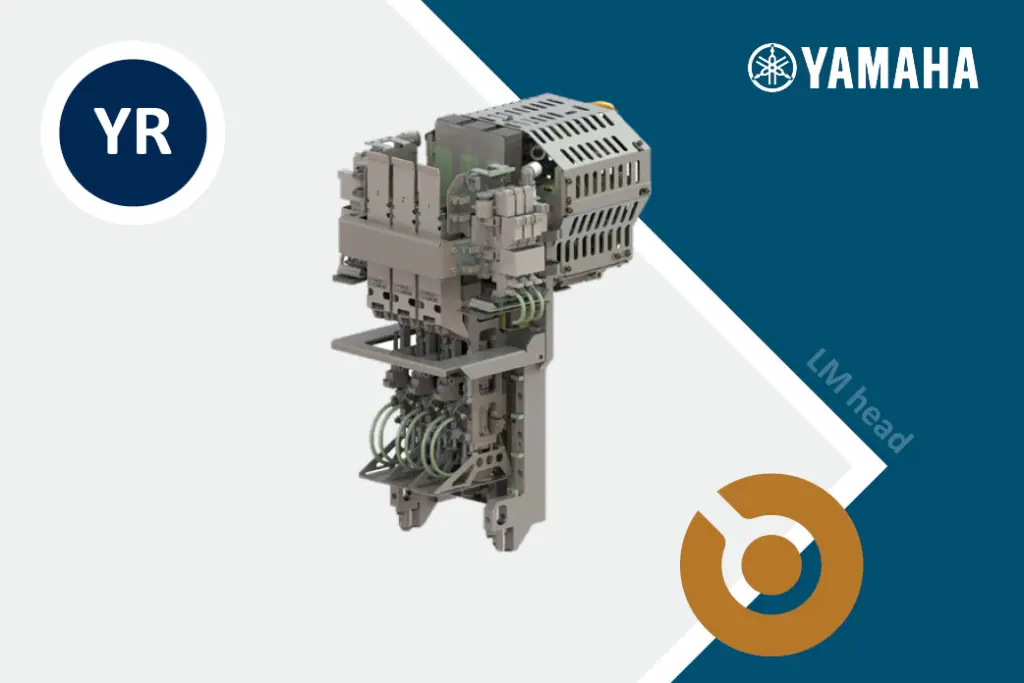

Pick one or combine the YAMAHA SMT mounting heads that will support your production best
![Yamaha RM mounting head Picture of YAMAHA RM head](/web/image/42734-af7ce49e/RM%20head%20-%203%20block%20Line-up%20www.jpg)

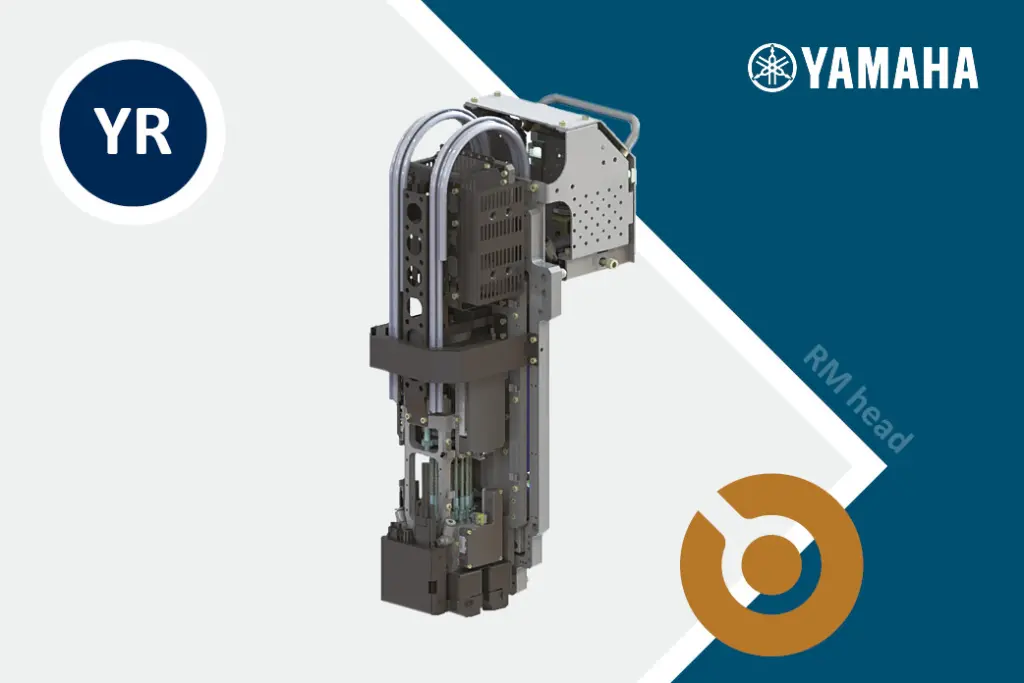

YAMAHA RM head
The RM head is a rotary mounting head that surface mount components at incredible high speed.
The rotary mounting head mounts and handles a wide range of components from 008004" (0201 mm) up to midsized components 6,5 x 12 mm at a staggering high speed.
RM head: 18 nozzles
RM head is available on the YRM20
![Yamaha HM mounting head Picture of YAMAHA HM head](/web/image/42738-2058a860/HM%20head%20-%203%20block%20Line-up%20www.jpg)

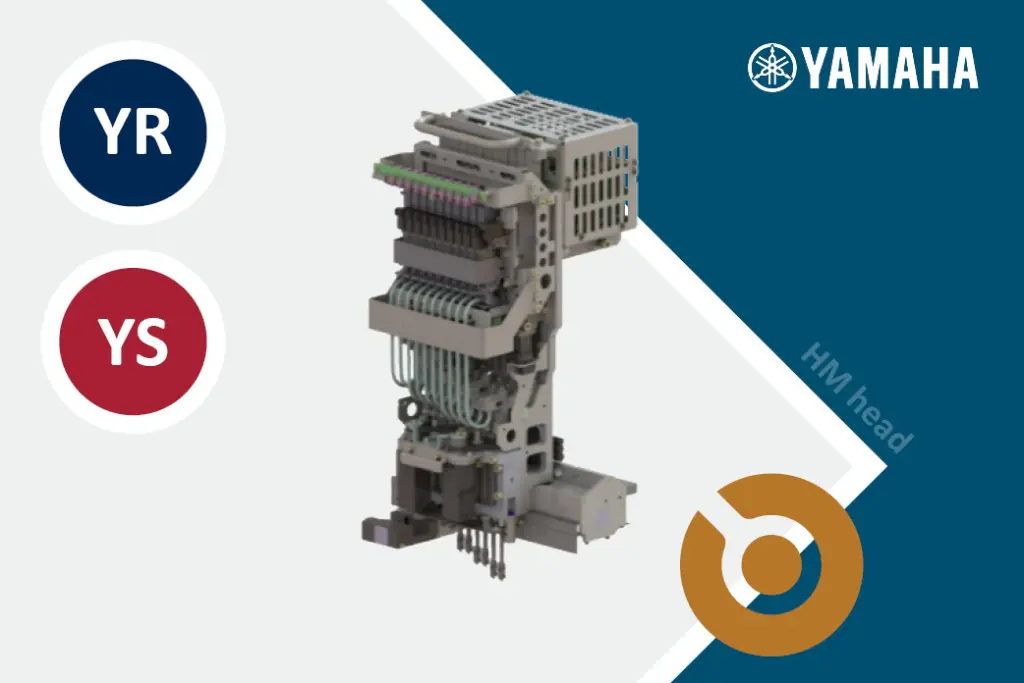

YAMAHA HM head
The HM head is our most versatile mounting head that covers the spectrum of component sizes depicted on the illustration 1 below.
Handling various types of components at high speed makes the HM head is our most sold mounting head, as it supports components sizes from 008004" (0201 mm) up to 55 x 100 mm.
HM head: 10 nozzles
HM head is available on the YRM20, YSM20 and YSM10.
![Yamaha FM mounting head Picture of YAMAHA FM head for component mounting](/web/image/42739-be200d5b/FM%20head%20-%203%20block%20Line-up%20www.jpg)

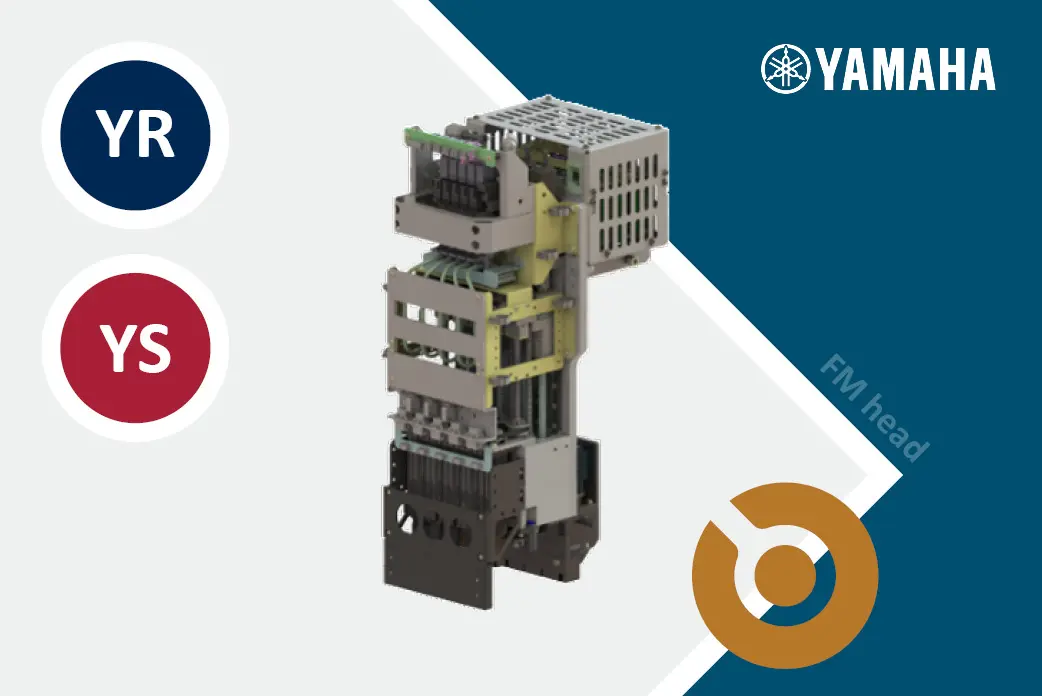

YAMAHA FM head
The super flexible mounting head called the FM head handles component sizes from tiny 03015 mm chips up to 55 x 100 mm components.
The fact that the FM head supports mounting the highest components makes the FM head super flexible and also perfect for mounting most odd-shaped components.
FM head: 5 nozzles
FM head is available on the YRM20, YSM20 and YSM10.
More info about CPH and supported components sizes can be found on each Pick & Place machine model.
What component sizes does the YAMAHA mounting heads support?

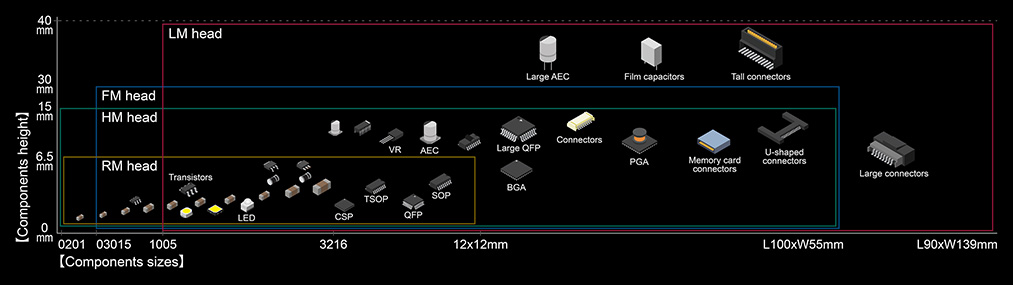

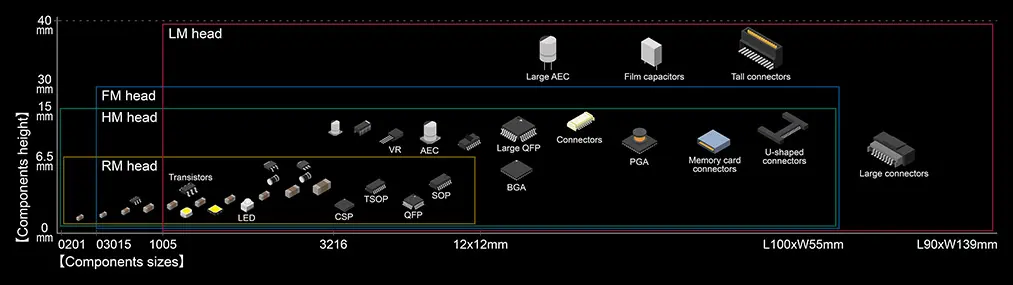

the illustration below shows you the overview over the component range the YAMAHA mounting head cover*.
![Component size mounting chart divided into mounting heads](/web/image/55015-20c6b9f2/YAMAHA%20head%20vs%20component%20sizes%20-%20quarter%20BIG%20PIX.jpg)
Illustration 1
* Note component sizes are defined in metric / mm & is based on the YRM20 model
