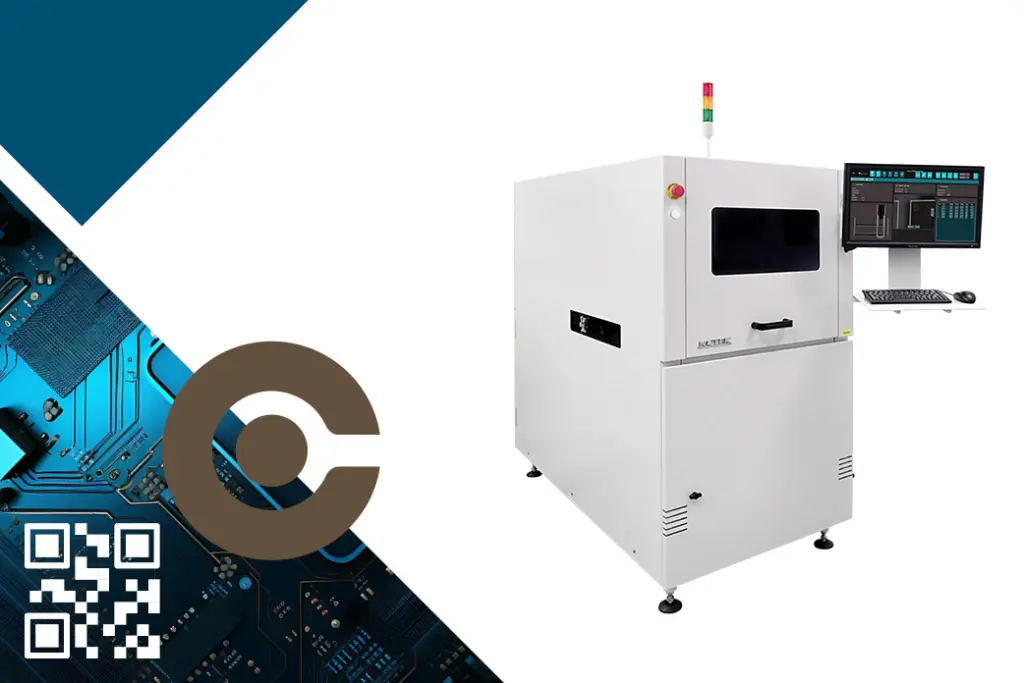

NUTEK LMC S7 laser marker
Reliable traceability optimized for your PCB assembly process
The Nutek's series 7 laser marker system delivers detailed and consistent markings on every PCB. The laser marker can be integrated directly into your production line or used as a stand-alone cell.
Its innovative flying laser concept locks the PCB in place while a CO2 laser moves across the board via a servo-controlled X-Y axis, ensuring accuracy without slowing down production.
Programming your markings is simple and flexible with our Windows™-based software - set the amount, position and type of markings in just a few clicks. With the Nutek LMC S7 you enable traceability and maintain high-quality standards - every day.
- Optional double-sided marking with high-speed integrated inverter
About NUTEK LMC S7 laser marker system
Nutek Laser Marker standard features & specifications:
- PCB length: 80 - 508 mm
- PCB width: 65 - 460 mm
-
PCB thickness: 0,6 - 4 mm
-
Large marking area:
- 98 x 98 mm per position
- 460 x 460 mm total coverage
- Laser type: CO2, 10 Watt, air cooled
- Wavelength: 10.63 μm
- Laser class: Class 4
-
Housing class: Class 1
-
Capability to mark text, barcodes, 2D codes and graphics.
- Renewed interface (HMI - 2025)
- Variable position PCB stopper (mounted on X-Y gantry)
- Synchronous PCB transfer in / out
- Conveyor width adjustment using hand crank
- PCB side clamping
- Rigid machine structure with large access doors
- Mechanical PCB lift for constant focal point
- Fast product change-over
- Selectable bypass operation
- Code check with Keyance scanner
- Uninterruptible power supply (UPS)
- Towerlight will show machine status
-
Controlled by industrial PC and CE certified.
-
More specifications? Downloading product flyer with all info below.
- Machine size: 850 x 1.645 x 1.600 mm
- Machine weight: 800 kg.
Nutek Laser Marker LMC-S7 options:
- Laser mark on labels with Label feeder module
- Program controlled conveyor width adjustment
- PCB orientation check
- Position alignment and fiducial recognition
- Area marking & decoding
- Bad marking recognition
- Double-sided marking with integrated high speed inverter
- Barcode scanner (Keyance)
- Bad marking recognition
- Network- & database connection
- Fiber laser
-
Fume extraction, external unit, 1000 VA max.
- Other options are available on request

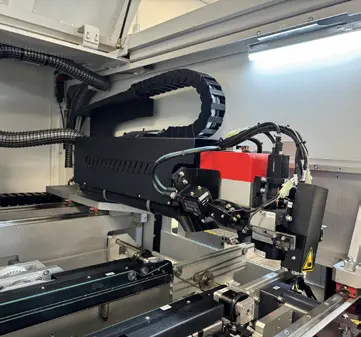

Inside the Nutek LMC-S7 laser marker.

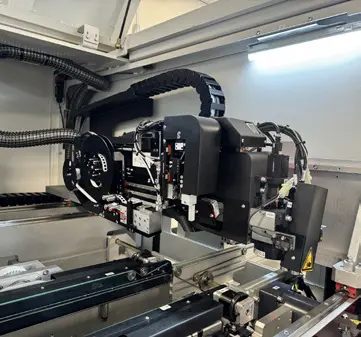

The LMC-S7 nutek laser marker a label feeder can be added as an option.
Nutek LMC S7 laser marker specs
Learn all the details. Get the full technical overview of the Series 7, including flying laser technology, double-sided marking and integration options.
Nutek LMC S7 laser marker in action
Watch it improve production. See the Nutek series 7 laser marker in action - accurate PCB marking that supports traceability and keeps your line moving.
