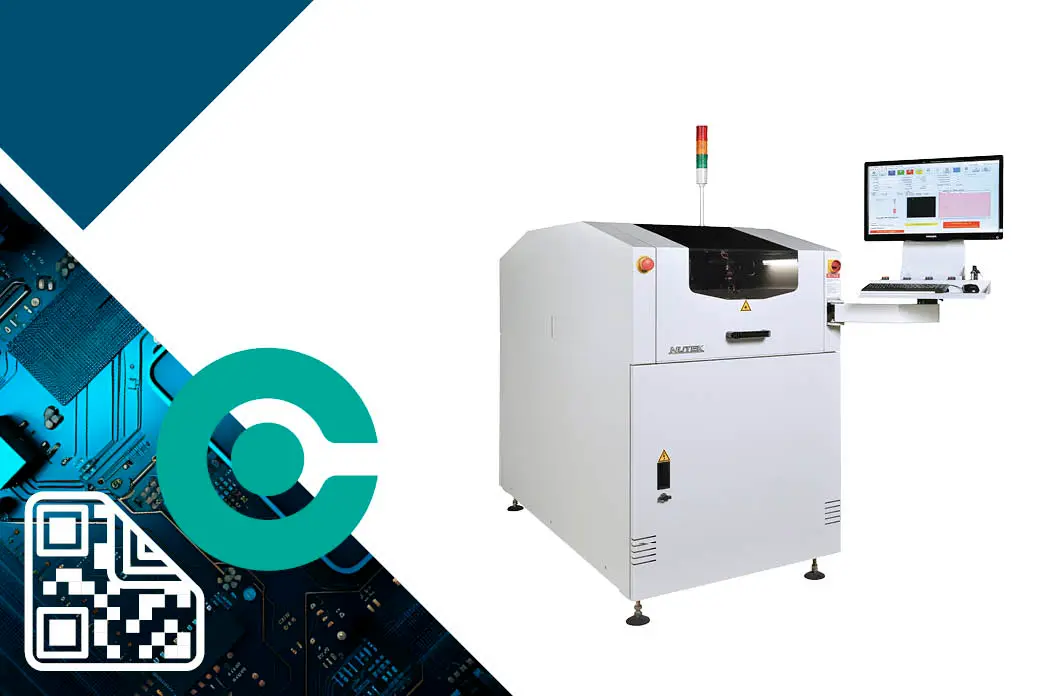

Nutek BLC-S3 pcb labeling system

Mark you PCB with labels

PCB labeling for PCB marking Nutek BLC-S3

Tailor the labels to your specific needs; text, barcodes, 2D codes, and graphics.

Using a X-Y gantry, the label applicator head seamlessly navigates between the label printer and the desired PCB placement position.

The PCB is securely clamped in place and receives bottom support through manually positioned magnetic support pins. This setup ensures accurate label application at any desired position.

  - The PCB labeling system can be used inline or as a cell solution

About PCB labeling system Nutek BLC-S3  ​

Nutek Laser Marker standard features & specifications:

  • PCB length: 80 mm - 508 mm

  • PCB width: 65 mm - 460 mm

  • PCB thickness: 0,6 - 4 mm

  • Large labeling area: 460 x 460 mm total coverage

  • Printer type: Zebra ZT610, 600dpi

  • Printer software include 2 user license

  • Label size, minimum: 6 x 6 mm

  • Label rotation: possible in 1 degree steps

  • Camera read label before pick up

  • Fast and easy label / ribbon replacement from rear-side with slide out mechanism

  • Base support including 4 magnetic pins

  • Towerlight will show machine status

  • Controlled by industrial PC and CE certified.

  • More PCB labeling system info? Download the product flyer with all info below.

  • Machine size: 850 x 1.680 x 1.440 mm

  • Machine weight: 750 kg.

Nutek PCB labeling options:

  • Conveyor width adjustment controlled by program

  • Double sided labeling with integrated PCB inverter

  • Database and network connection

  • PCB orientation check
Download Nutek PCB labeling flyer

Nutek PCB labeling flyer

Download our flyer now and unlock the key to PCB labeling at its best. You find all all PCB labeling specifications and production capabilities with the NUTEK BLC-S3 PCB labeling system.

Download >



Use NUTEK LMC-S3 for PCB labeling

Mark your boards with ID info, not directly on the PCB, but on a printed label with e.g. a QR code . The NUTEK laser marker can be configurated with a label feeder. In the video you see the PCB labeling running as a cell solution.

PCB labeling with Nutek BLC-S3 >
Want a price on Nutek PCB labeling or do you have questions about pcb marking

NUTEK PCB labeling system price & info

Benefit from our expertise of PCB labeling systems - is just a click away. No matter if it is more Nutek BLC-S3 pcb labeling system info, a price or more general advice you seek on how to mark your PCBs in a not permanent way.

Personal assistance >
