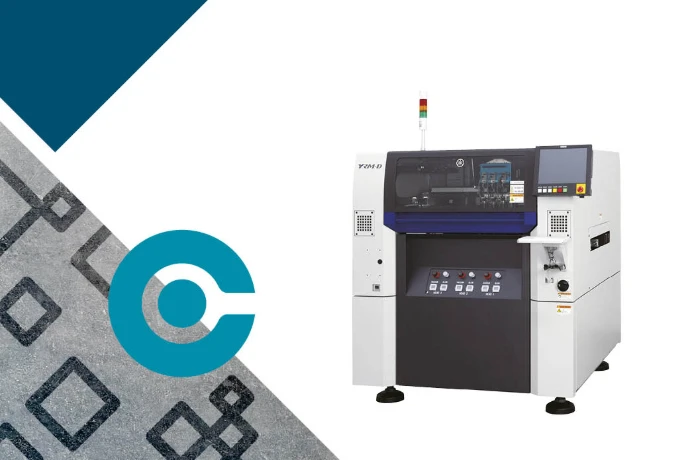

Yamaha YRM-D - a high-speed inline dispenser

• Applicable PCB:
  - L 510 x W 460 mm  to  L 50 x W 50 mm



• Dispensing speed: 0.07 shot

• Dispensing accuracy: ±0.05 mm Cpk≧1.0


• Dispensing system: air pulsed (paste and / or glue)

• Wide range selection of dispense nozzles

• Syringes: 5 to 30 cc


• Heads: 2 dispenser heads



• Options:
  - a 3rd dispenser head
  - Non contact dispensing
  - Dot calibration station
  - Dispense material verification system
  - YAMAHA SMT software - intelligent factory options
      - Dashboard
      - Auto Program ChangeOver



• Machine size: L 1.254 mm x W 1.440 mm x H 1.445 mm

• Machine weigh: Approx. 1.200 kg

Reliable, fast and accurate dispensing with YAMAHA SMT

For many manufacturers, applying SMT glue for double-sided boards can be a tricky and unreliable process. Traditionally, this is done either through contact dispensing with a needle or screen printing the glue through a stencil.

Both methods have limitations when it comes to PCB design, dot size, and speed. Glue printing can also result in smearing if the stencil isn’t kept perfectly clean.

YAMAHA SMT introduces the YRM-D dispenser: A faster, more reliable and accurate dispensing solution.

Here’s what the YRM-D offers:

• Non-contact dispensing
  The YRM-D excels in dispensing and coating board cavities, including already-mounted parts and areas where stoppers can’t be used, such as high-density boards.


• Line & dot dispensing
  It can dispense in both dot and line patterns, adapting to the board shape. Perfect for tasks like filling and insulation.


• 2 or 3 dispensing heads
  Choose between 2 heads (standard) or 3 heads (optional), with independent Z-axis and R-axis servo control, to match your production needs.


• Flexible syringe & nozzle mounting
  Direct syringe and nozzle mounting support multi-fluid and multi-state liquid dispensing.


• Wide selection of dispensing nozzles
  Choose from a variety of nozzle options to fit your specific application.
