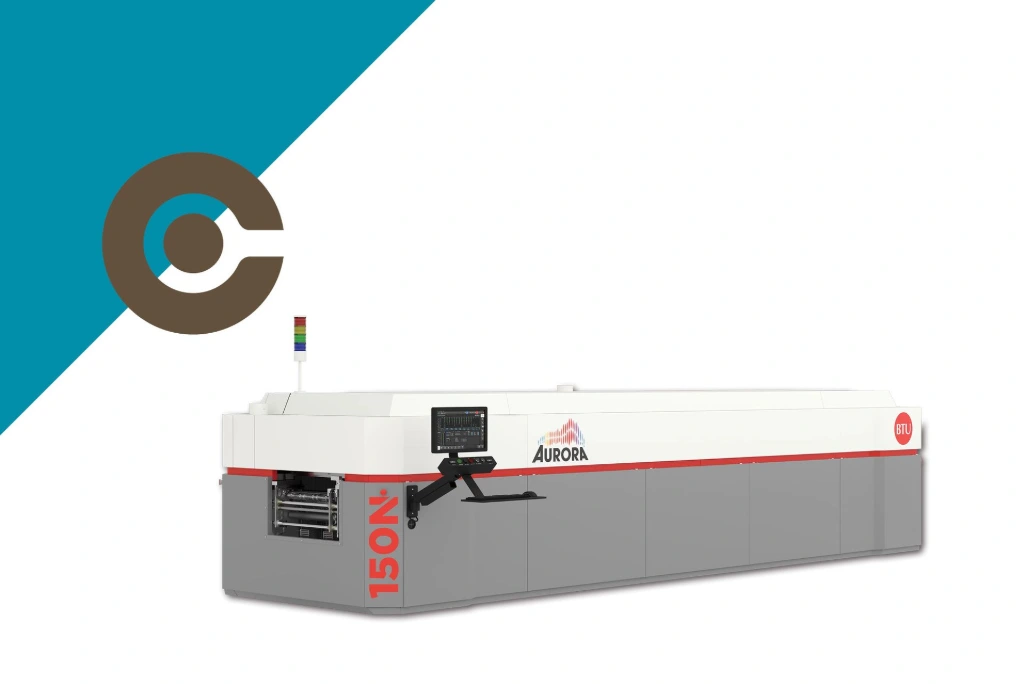

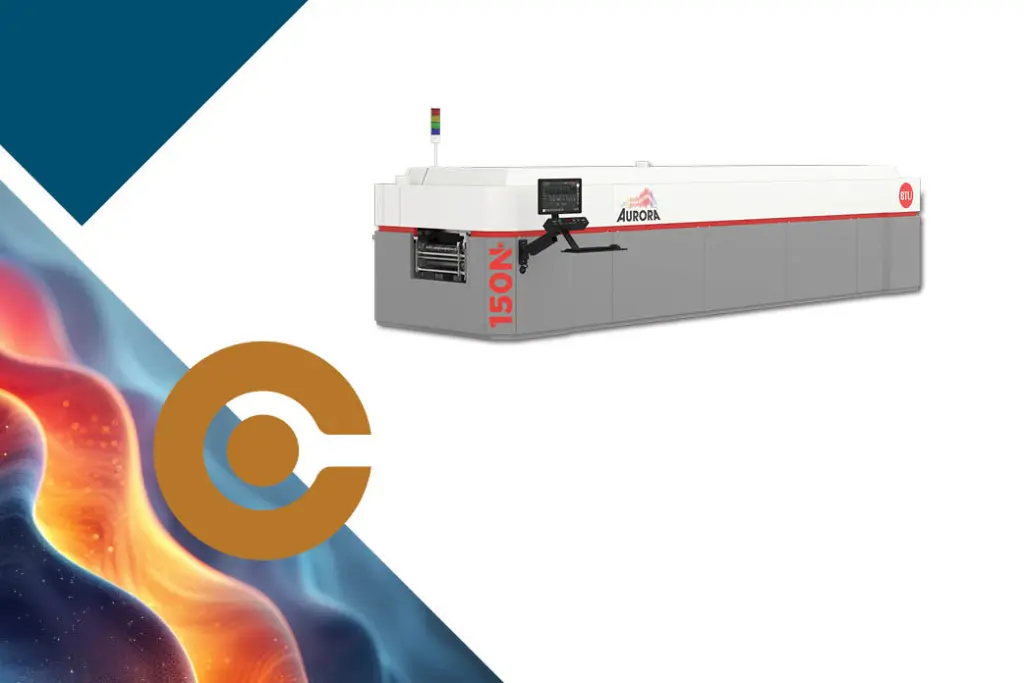

BTU Aurora 150n nitrogen reflow oven

A nitrogen reflow oven for assembly line

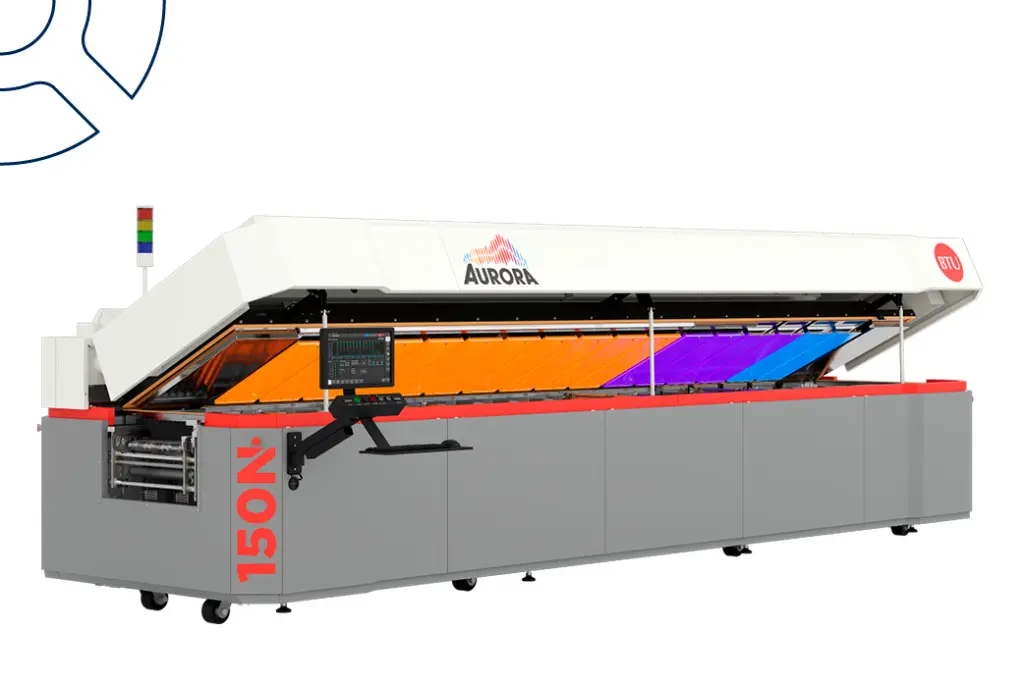

Aurora 150N BTU reflow oven

The new and improved BTU reflow oven platform; Aurora offers a new user interface with e.g. icon buttons as menu, improved monitoring dashboard & a configurable user home screen. Conveyor width is 620 mm (single lane) / 2 x 305 mm (dual lane) as a standard. The conveyor speed is 0,254 to 2,54 m/min.

Because Aurora 150 includes a unique configuration flexibility on 4 out of the total of 16 heating & cooling zones, it can be setup to fit any PCB assembly production.

Tip! Do you produce large & heavy PCBs - or just need more reflow cooling? If yes, you can configure the Aurora 150N reflow oven to have 6 cooling zones and 10 heating zones.

  - Total length 6.490 mm  Software & advanced options >

About Aurora 150N - a BTU reflow oven

  • Soldering atmosphere: N2 nitrogen

  • Total length 6.490 mm

  • Heating zones: 12 top + 12 bottom

  • Cooling zones: 4 top + 3 bottom
  • Maximum temperature: 350°C  (option 425°C)

  • Heating length: 3.792 mm

  • Cooling length: 1.264 mm

  • Software & advanced options >

  • Innovative cooling system

  • Flux management system

  • Low maintenance

  • Lifetime warranty on heaters and blowers

  • Reflow oven size: L 6.490 x W 1.820 x H 1.595 mm

  • For more BTU Aurora 150 info and specifications download the brochure below.

More Aurora 150N info & specifications

Download the Aurora 150N BTU reflow oven brochure to dive into all the reflow oven details, options and configuration possibilities.




Introduction to the Aurora reflow oven

Closed loop convection control | We invite you to look at this introduction of the newest BTU innovation; the AURORA reflow oven.

Ask questions or get a price on the Aurora 150n nitrogen reflow soldering oven

Aurora 150n reflow oven price?

- or do you have reflow oven questions? Do get in touch, as we are more than happy to help you find the reflow oven that best suit your production needs.
