Nutek PCB turn conveyor
Let your SMT line fit the production room - not the other way around
Not every production room is long and straight. Pillars, doorways, and existing equipment often decide where the line can go. The Nutek PCB turn conveyor lets you work with those limits instead of fighting them.
Rotate the board 90° or 270° to send it left or right, and your line can bend into an L or U shape. With the end of the line back near the start, one operator can easily keep an eye on both loader and unloader. When no turn is needed, bypass mode lets boards pass straight through.
The unit rotates clockwise or counter-clockwise, so it adapts to your layout rather than dictating it. The PCB is held securely and stays component-side up throughout, so freshly placed components travel undisturbed to the next process.
L-shaped, U-shaped or straight through SMT line. A turn conveyor makes it possible.
More Nutek PCB turn conveyor info
Nutek conveyor turn version:
- - NTM 91 - Turn 90° clockwise or counter-clockwise
- - NTM 181 - Turn 180° to change fixed rail position
- - NTM 271 & 361 - various configurations possible
-
By-pass mode are available.
-
Unique lateral transfer system to handle small PCB’s.
-
Conveyor width adjustment by hand crank.
- Controlled by PLC & CE certified.
Download spec sheet below to see all specifications on the different versions of the Nutek turn conveyors.
Additional options to the PCB turn unit:
- Good or bad board separation
-
Conveyor width adjustment options:
a) Electrical
b) Automatic -
Cantilevered input- or output conveyor (length 500 mm)
-
Touchscreen
-
Towerlight
- Alarm buzzer
More options available on request - contact us for this
What is a PCB turn conveyor?
A PCB turn conveyor is a unit in the SMT line that rotates the board so it continues in a new direction. It lets the production line turn a corner instead of running in one long, straight row.
When do you need a turn conveyor in an SMT line?
When the production room doesn't have space for a straight line, or when you want the end of the line closer to the start. Turning the board 90° or 270° lets you build the line in an L or U shape around pillars, walls, or existing equipment.
Does a 180° turn flip the PCB?
No. A 180° turn rotates the board in the horizontal plane, so the same side stays facing up. The board simply enters the next machine back-edge first. To turn the board upside down, you need a PCB inverter. You'll find it among our Nutek traffic control conveyors.
Can the board go straight through without turning?
Yes. In bypass mode, the PCB passes through the unit without rotating. This is useful if you only need to change direction for some products.
How do I choose the right Nutek turn conveyor?

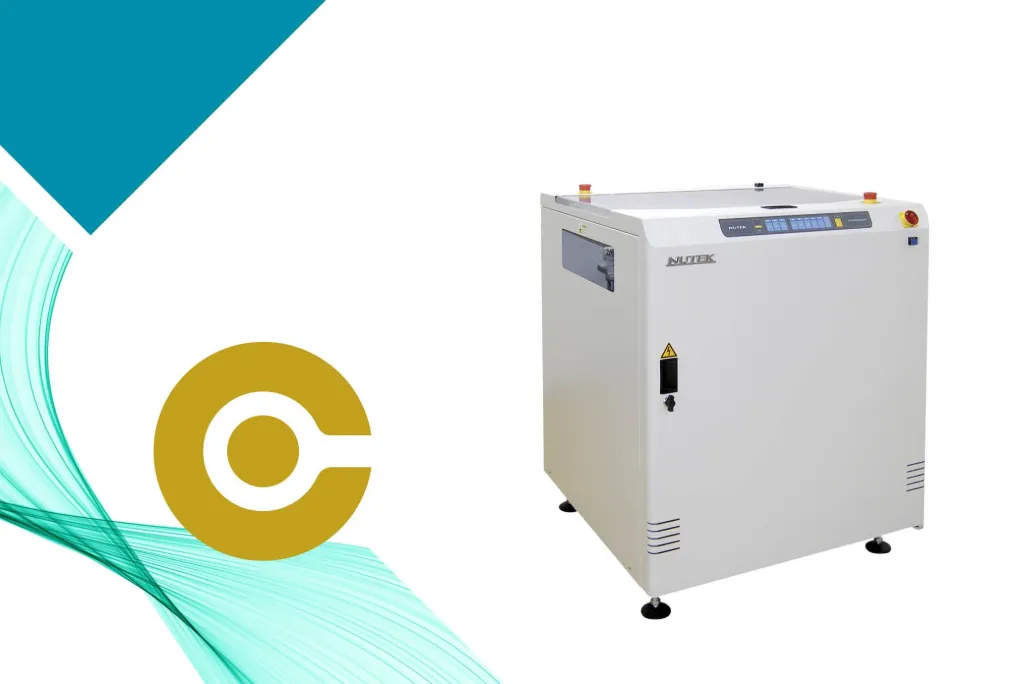

The Nutek turn conveyor comes in four versions. The right choice depends mainly on your board size and line setup. Our experts are happy to help you find the best fit.
Nutek PCB turn conveyor – flyer with specs
The Nutek turn conveyor comes in various versions. The flyer shows them side by side, with all the specifications, so you can quickly see which one fits your boards and your line. It's also handy to share with colleagues or bring to your next layout meeting.
Watch the Nutek turn conveyor change direction
In under a minute, you'll see the board clamped, rotated 90° or 270°, and sent on in its new direction.
It's the easiest way to picture how your PCB assembly line could take an L or U shape.
Nutek PCB turn conveyor – price and advice
A turn conveyor is a small part of your SMT line, but where you put it shapes the whole flow.
Tell us about your layout and your boards, and we'll help you find the right setup and send you a price.
