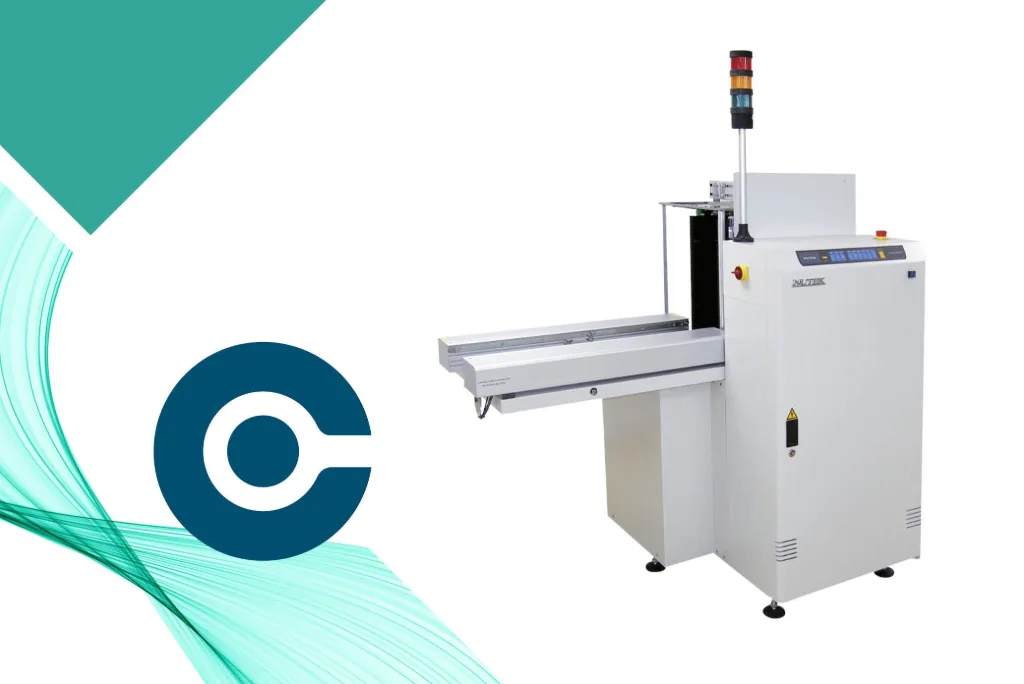

Nutek single unloader
Nutek unloader with a single unloader magazine
This single PCB unloader conveyor collect boards in magazine when they come upstream machine. The Nutek magazine unloader will typically pull the board from reflow oven or after inspection in the AOI machine.
This Nutek unloader is a magazine based unloader. This conveyor is a PCB single magazine unloader.
- Magazine based unloader
About Nutek unloader with a single unloader magazine
The Nutek single unloader comes with:
Placed manually on the platform is the magazine that is clamped in position.
The platform is flexible is suited standard magazines.
Exchange magazine from the rear of the machine.
Inlet with stopper to control PCB flow from upstream reflow oven.
Conveyor width is adjustment with hand crank.
Regulated pressure of pneumatic with pusher.
Towerlight that display for machine status.
Selectable pitch settings.
Controlled by PLC and CE certified.Download all specifications in the spec sheet download below.
Options single unloader conveyor:
Conveyor width adjustment:
- option 1: Electrical
- option 2: Automatic
Magazine loading from the front-side
Pusher buttons at ratio 1:2 to conveyor width
Other options are available on request
PCB unloader data
Download unloader specifications
Get all PCB unloader specifications and more infomation by downloading the Nutek single unloader product flyer.
Price or more info?
We are ready to help you
Do you want the price on this Nutek unloader or do you have questions about this Nutek PCB unloader conveyor? Please contact us.
