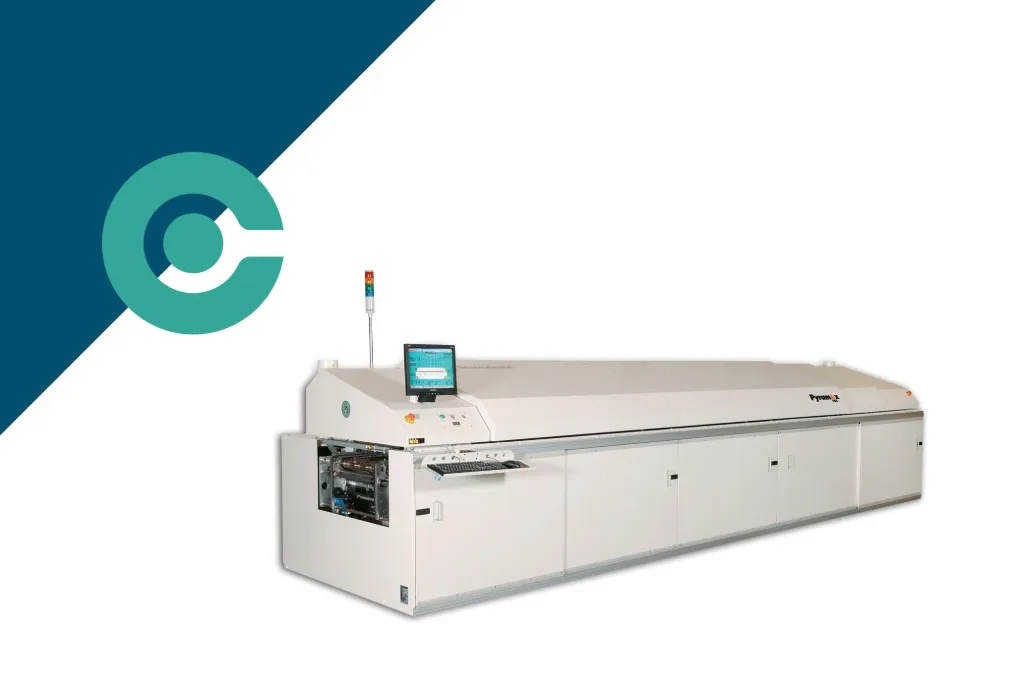

Top of the line Pyramax 150a z12 air reflow oven

Assembly line air convection reflow oven

BTU Pyramax 150A z12

This SMD soldering reflow oven Pyramax 150a z12 has 12 heated zones and automatic width adjustment for the boards.

Heating is accomplished via a forced impingement convection system. Forced convection is provided by a proprietary blower system.
This smd reflow convection oven; 150A z12 model is a hot air convection oven.

  - Total length 6.474 mm

About BTU Pyramax 150A z12 reflow oven

  • Air reflow soldering oven

  • Total length 6.474 mm

  • 12 top & 12 bottom zones

  • Temperature: max 350 degrees Celsius

  • Heating length: 3.810 mm

  • Cooling length: 1.219 mm

  • Option: Profile Guardian - a board level traceability tool to verify temperature download flyer

  • Low maintenance

  • Lifetime warranty on heaters and blowers

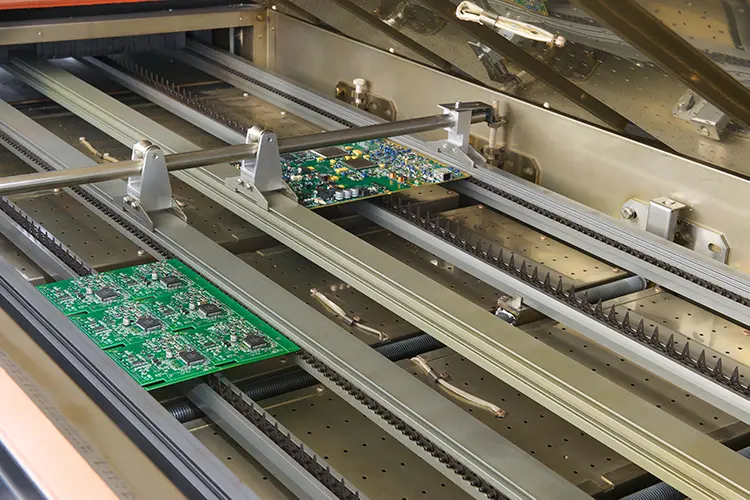

Dual line reflow soldering in BTY Pyramax 150a reflow oven

Dual line PCB soldering in pyramax reflow oven

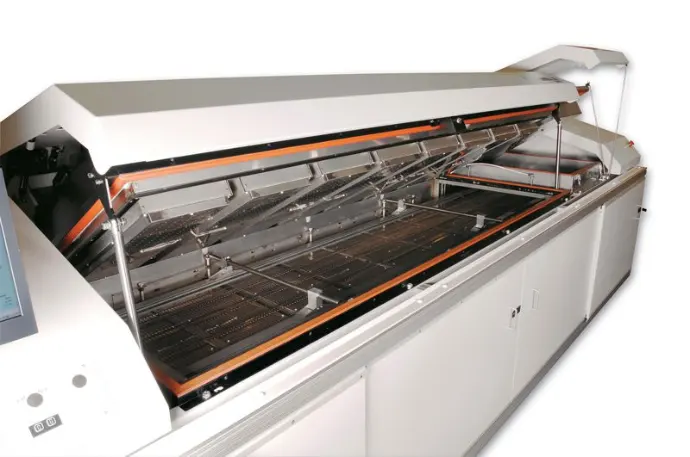

Inside BTU Pyramax 150a where you can see the heat and cooling zones

Open Pyramax 150a z12 oven from BTU

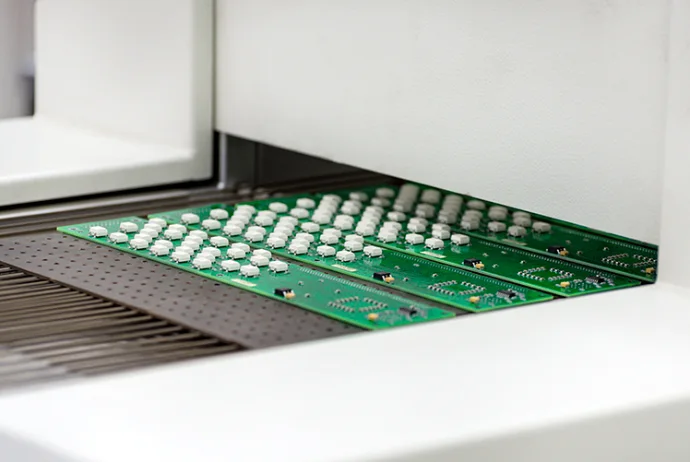

PCB entry into BTU Pyramax 150a

PCB entry into BTU Pyramax 150a z12 inline reflow oven

Pyramax 150A z12 spec sheet to download with smd reflow convection oven info

BTU Pyramax 150A spec sheet

Datasheet on 150A z12 reflow oven | Soldering spec sheet to download or to print with more information on the BTU Pyramax 150A z12 air reflow oven. Download to see more.




BTU Pyramax reflow ovens

BTU are experts in reflow ovens with closed loop convection both as air reflow ovens and nitrogen reflow ovens.
See more about the Pyramax reflow ovens in the video.
