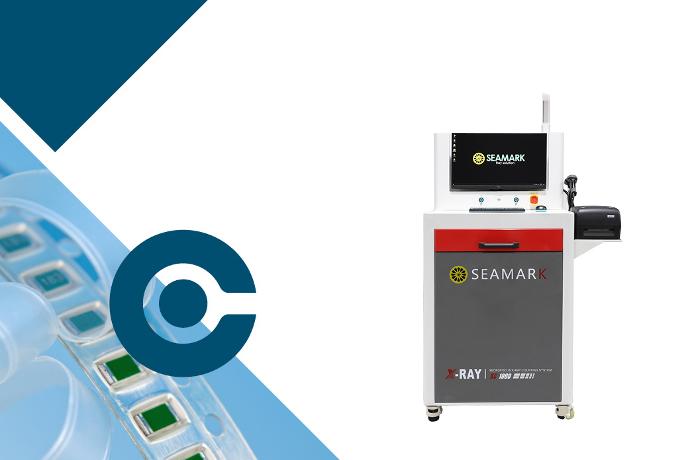

Seamark XC1000e x-ray component counter
The economy choice for fast and reliable SMD reel counting - powered by AI and designed for seamless workflow integration
The XC1000e combines affordability with high performance. Using advanced AI-driven X-ray fluoroscopic imaging, it quickly and accurately count components on SMD reels, trays, bulk materials and IC moisture sensitive packages.
With seamless ISM/MES/ERP/WMS integration to this fast fast component counter, automatic label printing, movable and a compact footprint, it’s the perfect solution to boost warehouse efficiency while reducing labor costs.
Inspection time: Counts 4 reels in under 12 seconds
More Seamark XC1000e x-ray component counter info
- Inspection:
Accuracy: 99,99%
Smallest SMD detection: 0402 metric01005" imperial /
Inspects in 3 modes: 1 reel - 4 reel - only one mode
-
X-ray tube:
Voltage: 30 - 80 kV
Power: 56W
-
X-ray flat panel detector:
Size: 427 x 427 mm
Pixel matrix 3072 x 3072
Resolution: 3.6 Lp/mm
AD conversion bit: 16 bits
-
Supported reels sizes
Reel max size: 4 reels - 7" / 178 mm
Reel max size: 1 reel - 15" / 381 mm
Reel height: ≤ 85mm
-
Easy access & labeling
Component entry: manual front drawer
Screen: non-touch screen
Label printer: on the front
Barcode reader: on the front
-
mes/erp integrated counter
- Machine size: 738 x 765 x 760 mm
- Machine weight: 550 kg
Count components on smd reels in a fast and accurate way:
Performance
• Count time: 1 reel approx. 3 - 10 seconds
• Count time:
4 reels in less than 12 seconds
Safety
• No damage to components or reels during counting

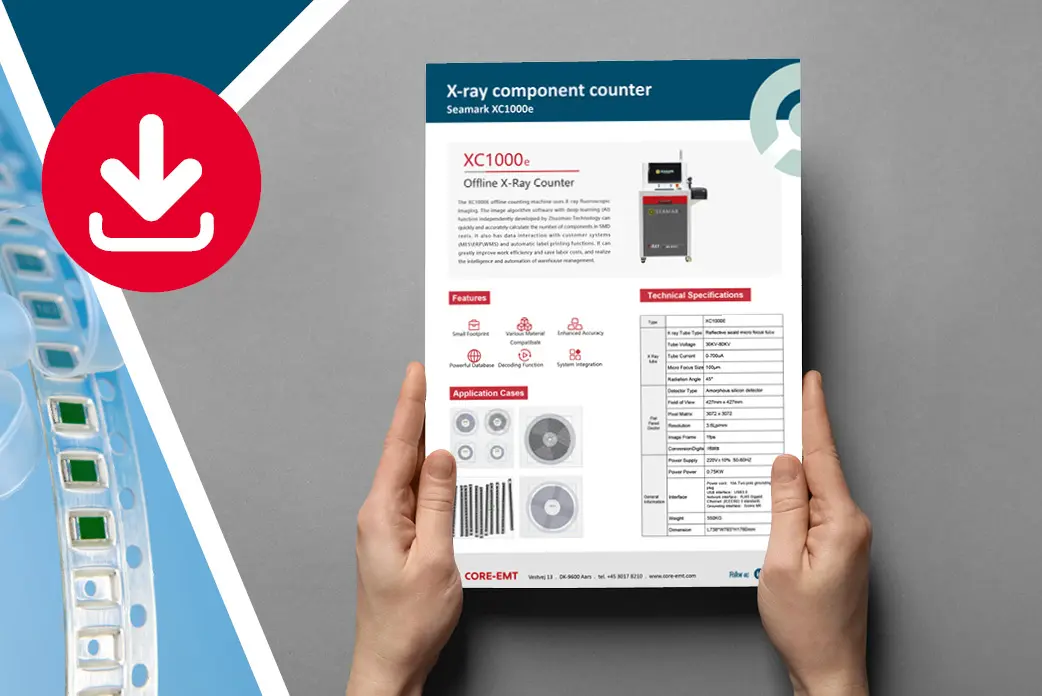

Seamark 1000e flyer
Download the XC1000E product flyer for detailed specifications, features and application cases on electronic component counting.
See Seamark xc1000e demo
Watch how the XC1000E makes component counting fast, precise and effortless with AI-enhanced imaging.
Talk to an component counter expert
Our team is ready to help you determine if the XC1000e smd reel counter is the right fit for your production and storage needs.
