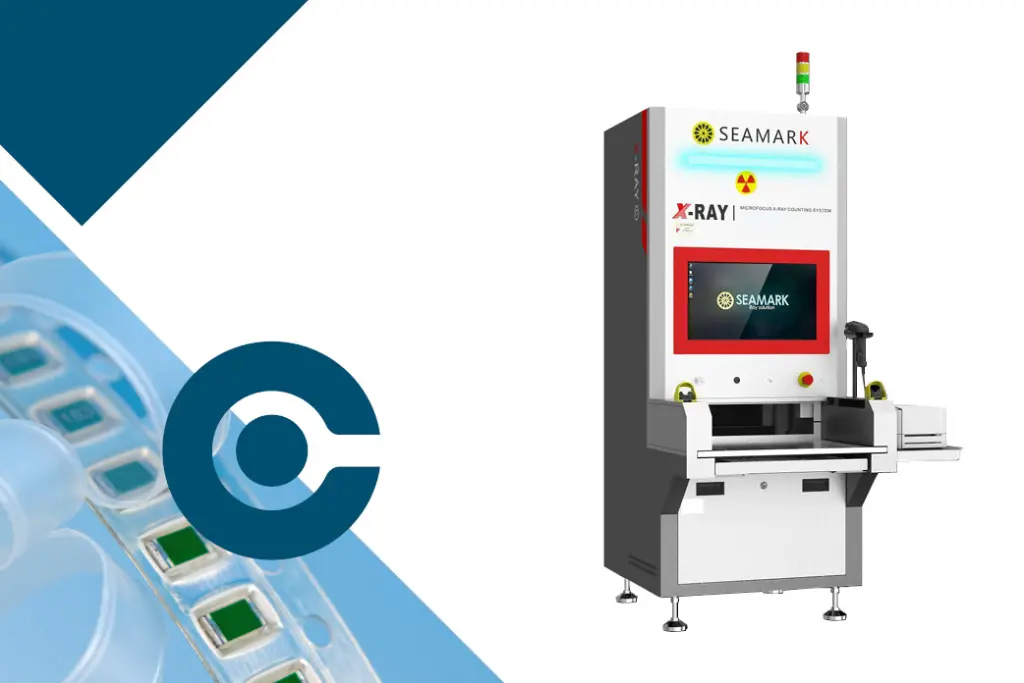

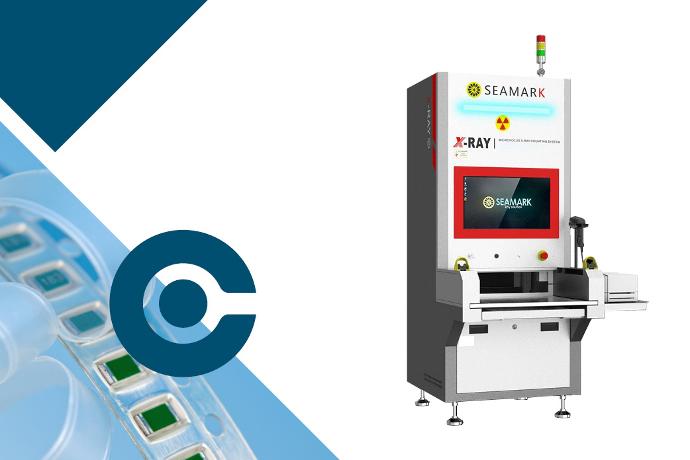

Seamark XC1100 x-ray SMD counter
Save time, reduce errors and simplify SMD inventory counting
The Seamark XC1100 uses AI-powered X-ray technology to automatically count full and partially used reels, tubes, moisture-proof bags and JEDEC trays - all with 99.99% accuracy.
- No unpacking required – count reels and packages without opening them
- Compact & user-friendly – designed to fit any workspace and workflow
- Error-free labeling – each component gets the right label automatically
- Seamless integration – connects directly to MES, ERP or WMS for real-time inventory control.
Inspection time: Counts 4 reels in under 12 seconds
More Seamark XC1100 x-ray SMD counter info
- Inspection:
Accuracy: 99,99%
Smallest SMD detection: 01005" imperial / 0402 metric
Inspects in 3 modes: 1 reel - 4 reel - only one mode
-
X-ray tube:
Voltage: 30 - 50 kV
-
X-ray flat panel detector:
Size: 427 x 427 mm
Pixel matrix 3072 x 3072
AD conversion bit: 16 bits
-
Supported reels sizes
Reel max size: 4 reels - 7" / 178 mm
Reel max size: 1 reel - 15" / 381 mm
Reel height: 5 - 80 mm
-
Easy access & labeling
Component entry: front panel door
Screen: non-touch screen
Label printer: on the front
Barcode reader: on the front
- Machine size: 800 x 1.100 x 2.210 mm
- Machine weight: 510 kg
A component counter will optimize the processes of SMD inventory counting, the smd component counting of incoming of materials and the pcb component counting when they return to inventory after a job is finished.
Performance & automation
- Count time: 1 reel approx. 3 - 10 seconds
- Count time: 4 reels in less than 12 seconds
- High Accuracy: 99.99%
- Smallest detectable component: 01005" (imperial) / 0402 (metric)
- No damage to components or reels during counting
- MES / ERP / MES integration
Seamark 1100 flyer
Want the full specs and all the details? Download our flyer and see how the XC1100 offline X-ray counter can streamline your inventory counting with unmatched accuracy.
SMD counter info?
Ready to take the next step with smd counting? Get in touch with us for pricing, demo options or any questions about how the XC1100 fits into your production workflow.
