SMD storage cabinet ISM 500

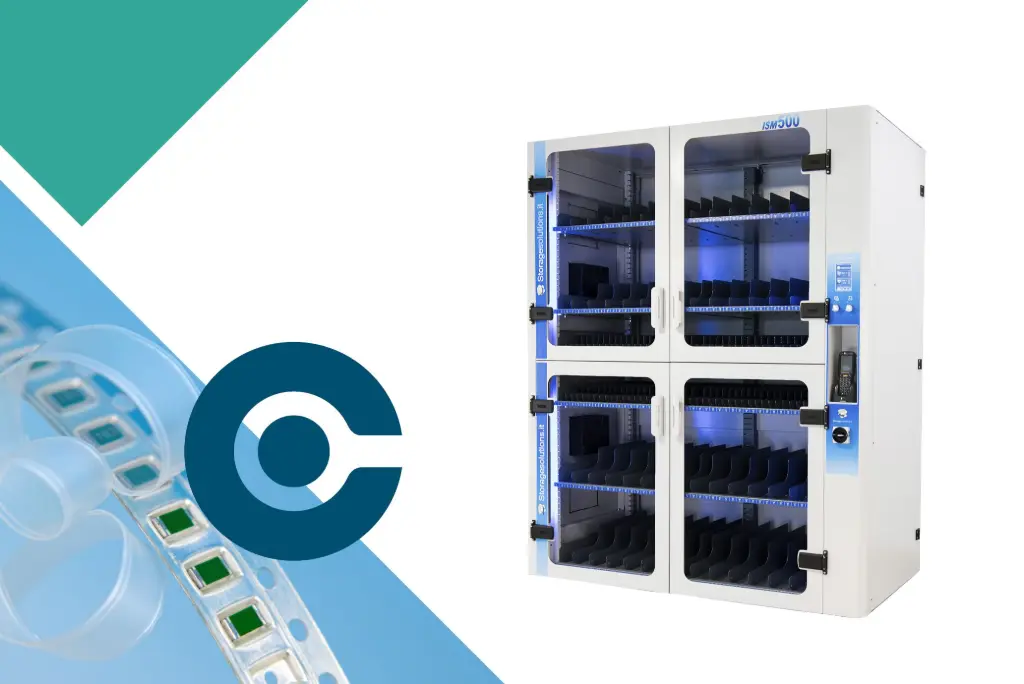

SMD cabinet storage solution ISM 500 from essegi

A SMD cabinet with intelligent SMD picking by light on the shelfs

The ISM 500 is designed to store SMD tubes, reels, PTH and SMT sticks, frames, coils and microprocessor trays. Plus, you have the option to add humidity control to protect sensitive components.

Whether you need a standalone unit or a combination of cabinets and storage towers, the ISM 500 can be configured to fit your SMD warehouse requirements.

Discover how the storage solutions ISM 500 can streamline your storage and keep your SMD components in perfect condition. Up to 640 different positions for 7, 13 or 15 inch reels.

Part of the Storage Solutions system | SMD workflow & system integration >

More SMD storage cabinet ISM 500 info

Storage Solution cabinet ISM 500

  • Capacity: see examples in the next accordion menu

  • Monitor: Touch screen 5"

  • Humidity control: Optional (HCU + FRU available)

  • Cabinet size:  W 1,765 m x D 0,84 m
    - Operative height:  2,215 m
       ( - adjustable up until 2,26 m )
    - Height with dehumidification: 2,511 m
    - Transport height: 2,15 m

  • Cabinet weight:
    - 300 kg - empty with no shelves
    - approx.. 940 kg - full - depending on configuration.

  • Storage Solutions server software & integration >

Find more specifications in the brochure below.

Intelligent SMD storage management cabinet ISM 500 configurations:

  • Positions for 7" reels, microprocessors trays, sticks, etc.
    - ISM 500 - Standard - 6 shelves: 80 positions*
       (E.g.: 2.160 reels 7" 8 mm.)
    -  ISM 500 - Standard: 160 positions* ( E.g.: 960 reels 15" 8 mm)

  • Positions for 7"/13"/15" reels, microprocessors trays, sticks etc.
    - ISM 500 - 10 shelves: 400 positions* (E.g.: 3.600 reels 7" 8 mm)

  • Positions for sticks etc.
    - ISM 500 - 16 shelves: 640 positions* (E.g.: 60.000 sticks)

    * 1 position = 34 x 800 mm
    * 1 position fits 9 x 7” reels 8 mm per position

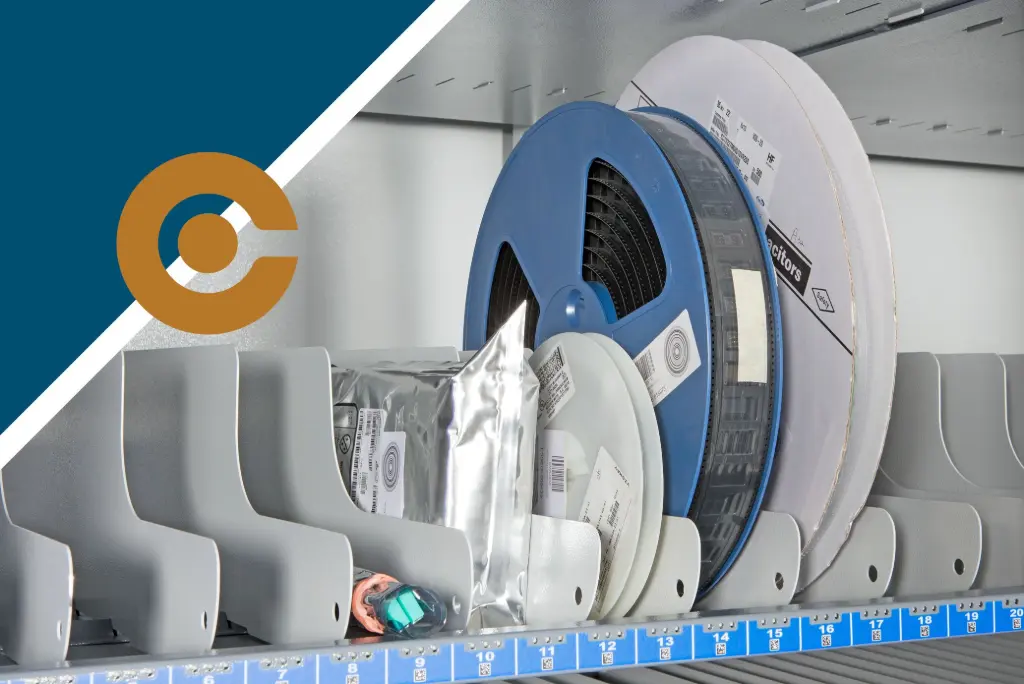

A shelf with SMD inside the ISM 500 cabinet

The ISM 500 cabinet is configurable with separators

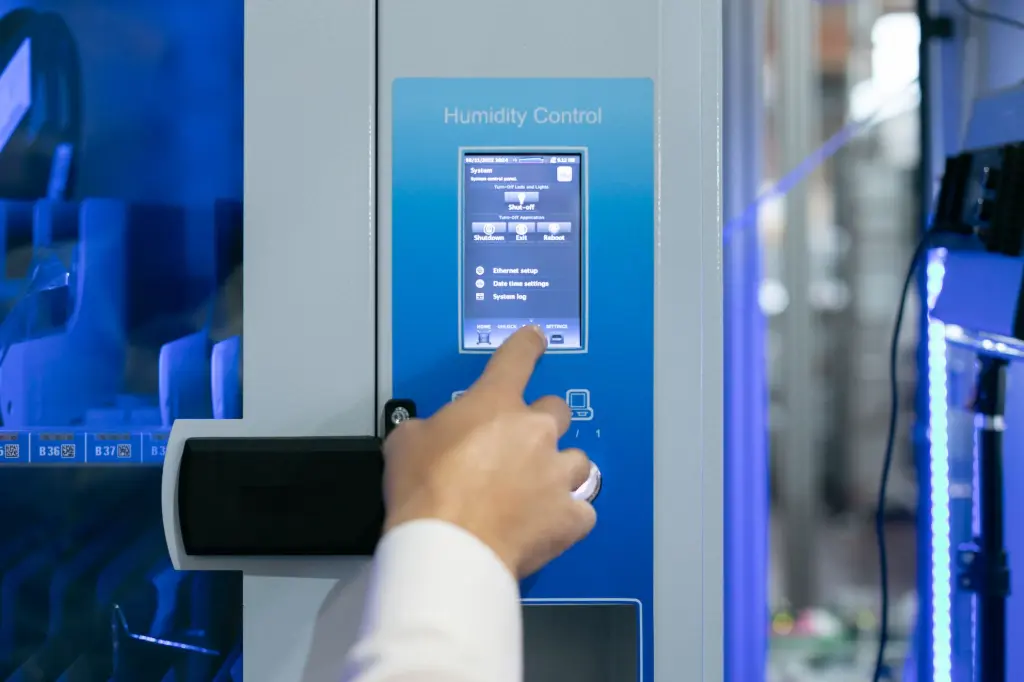

Humidity control touch screen panel outside on ISM 500 SMD storage cabinet

Humidity control touch screen panel on ISM 500 SMD storage cabinet

ISM 500 SMD storage cabinet from Essegi Storage Solutions

SMD storage cabinet ISM 500 brochure

Download the ISM 500 cabinet brochure with specifications

The ISM 500 storage solution spec sheet to download or to print with more information on the Essegi ISM 500 storage cabinet for you that want a closer look.

Download cabinet brochure >

See how fast the ISM 500 cabinet is to pick materials from

See how the SMD storage solution ISM 500 works in combination with the 3600 storage tower. Prepare to see a SMD picking that is a part of a truly clever SMD storage solution that include SMD handling, SMD logistics & SMD storage.

SMD picking from ISM 500 cabinet >
Storage cabinet ISM 500 expert

SMD storage cabinet ISM 500 price?​

or more SMD storage info? Just ask

SMD storage cabinets and SMD storage towers that can support and supply components to your assembly line.

Please get in contact if you help, guidance or a price

Ask our experts >
