SMD storage tower - ultraflex 3600

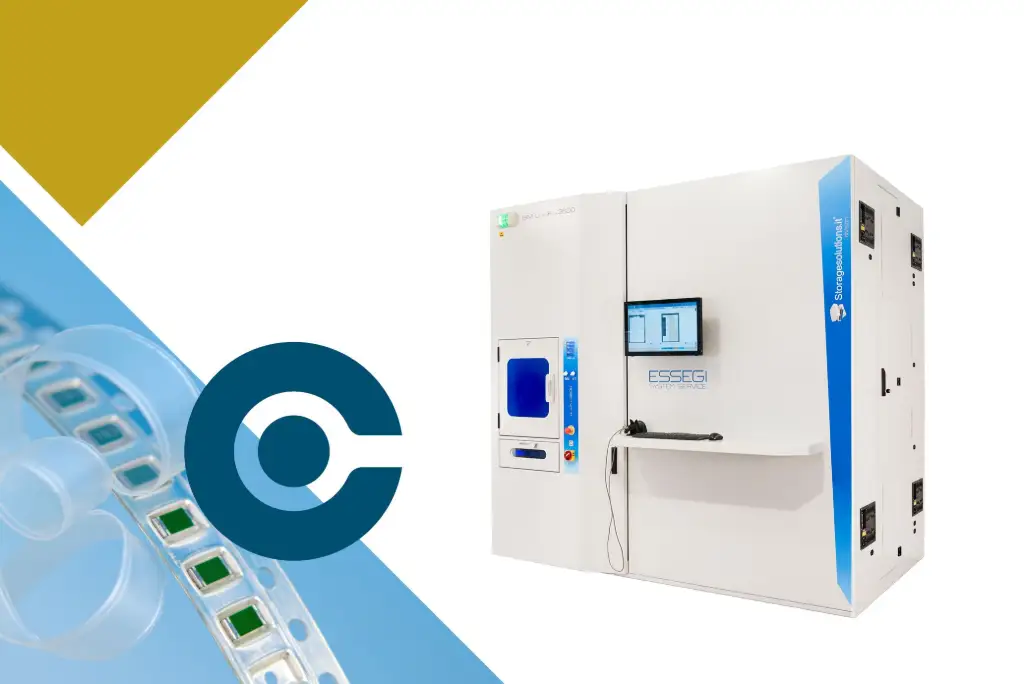

SMD Reel storage with Essegi ism 3600

Take your SMD reel management to the next level with our ISM 3600 storage tower, capable of holding up to 3,620 reels.

Timesaving - ultra low operating time:
Extraction: 27 reels in 60 sec operator time
Insertion: 54 reels in 60 sec operator time

With the essegi ISM 3600 storage solution the reels are marked up with a bar-codes that secures error free SMD handling for your upcoming job.

Store 3620 x 7" reels on 70% less floorspace | Software & integration >

More SMD storage tower - ultraflex 3600 info

Specifications

SMD Storage solution tower ISM 3600

Maximum capacity 3620 reels with 7" reels
Height of the reels freely configurable up to 88 mm.
24" Touch screen
Humidity control: Optional (HCU + FRU available)
Machine size: W 2,525 m x D 1,672 m
- Operative height: 2,48 m - adjustable feet 110 mm
- Transport height: 2,35 m
Machine weight: 1.133 kg (empty) | Full of cases 1.685 kg.

SMD storage capacity examples by different reel sizes

ISM ultraflex 3600 tower capacity examples

*Note that the example is based on different reels heights (up til 88 mm as that is the maximum tray height).

Pictures

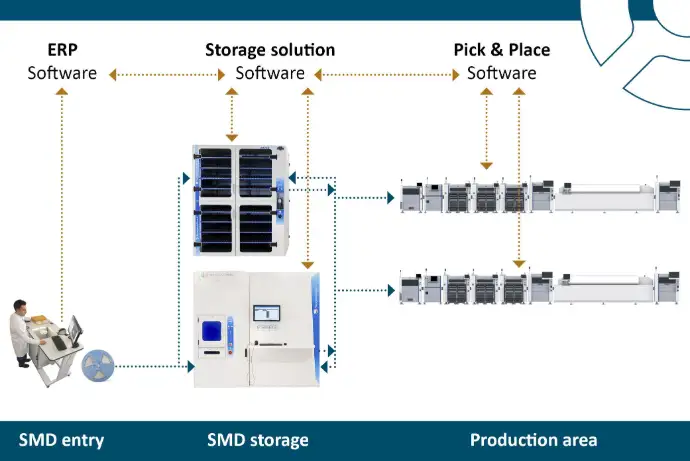

The Storage solutions workflow includes an incoming station, storage cabinets and a selection of various storage towers including ultraflex 3600

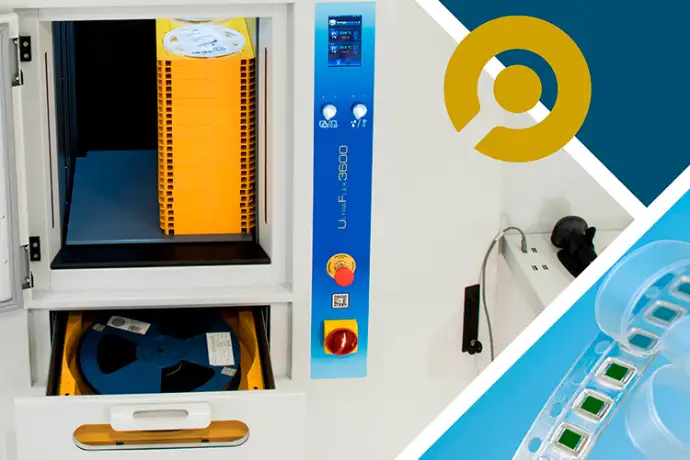

Reel extraction from the tower storage ultraflex 3600

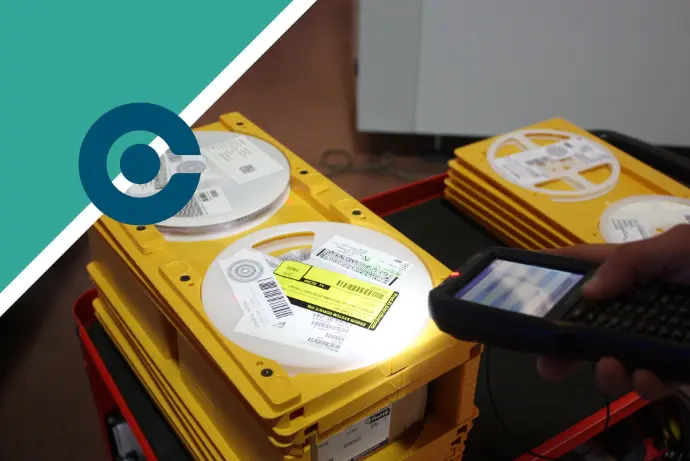

Reel check with PDA on the double cases that keeps the components safe inside the storage towers.

3600 ultraflex storage solution brochure with spec sheet to download or to print with more information on this Essegi reel storage tower.

Download brochure >

Get an introduction into how the storage solution ISM 3600 ultraflex works. It's going to give you a look into how the unit works.
