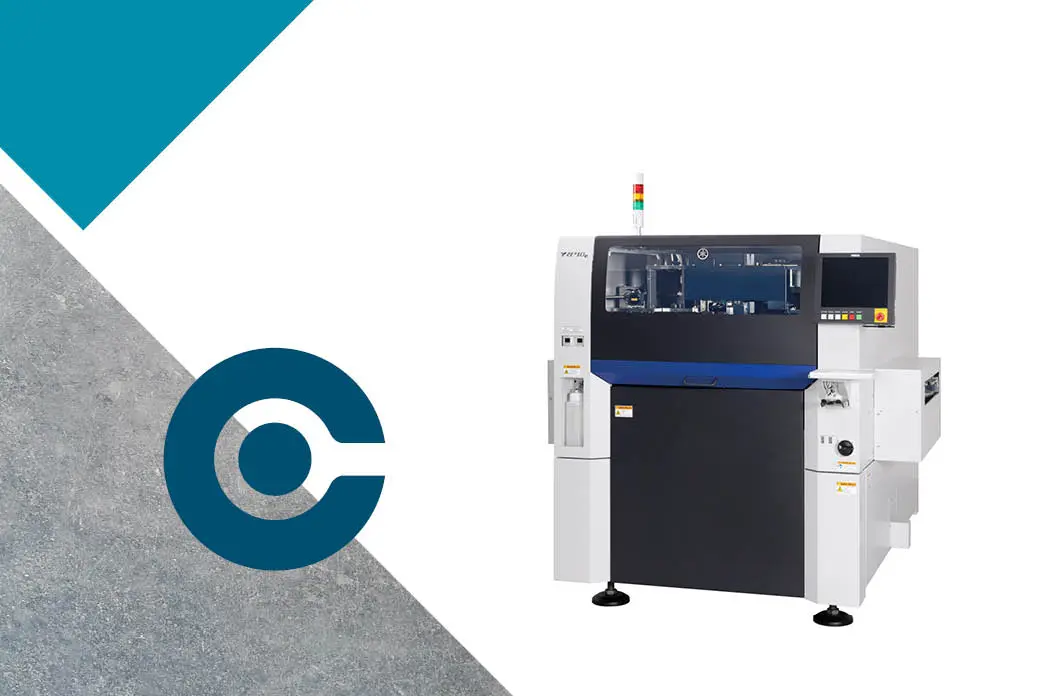

Yamaha YRP10e screen printer

Looking for an easy entry into high-quality solder paste printing? The Yamaha YRP10e is built for OEM and EMS companies that want reliable performance without the complexity.

With ±30 µm accuracy, 6-second cycle time, built-in inspection and automatic stencil cleaning, the YPR10e is a compact screen printer that delivers pro-level results right from the start.

Read full YRP10e article or see our range of screen printers here.

- Cycle time: 12 sec - incl. transport, printing & cleaning

About YAMAHA YRP10e Screen Printer entry-level screen printer

Specifications

High-speed solder printing:

- 6 sec/cycle* - excl. printing and cleaning time
- 10 sec/cycle* - printing excl. cleaning time
- 12 sec/cycle* - printing and cleaning
*under optimum conditions, L 180 x W 130 mm
Printing accuracy: μ ± 6 σ ± 30 μm Cpk ≧ 2.0
Universal stencil holder:
- size adjustment with one touch
- handles stencils up to: L 750 x W 750 mm
Supports PCBs: L 50 x W 50 mm to L 510 x W 510 mm
Printing head info: 3S head ( 3S = Swing Single Squeegee )

Each job program sets the squeegee attack angle & speed to the ideal setup that provide optimal printing conditions.
Solder remaining quantity measurement
Graphical alignment
Auto-cleaning system
3-stage conveyor system
Options include:
- 2D print inspection camera
- PCB vacuum support
- Uninterrupted Power Supply (UPS) system
- Temperature control unit
- Setup Verification with material time control
Software: YAMAHA YsUP factory tools
Machine size: L 1.640 mm x W 1.840 mm x H 1.525 mm
Machine weigh: approx. 1.710 kg
