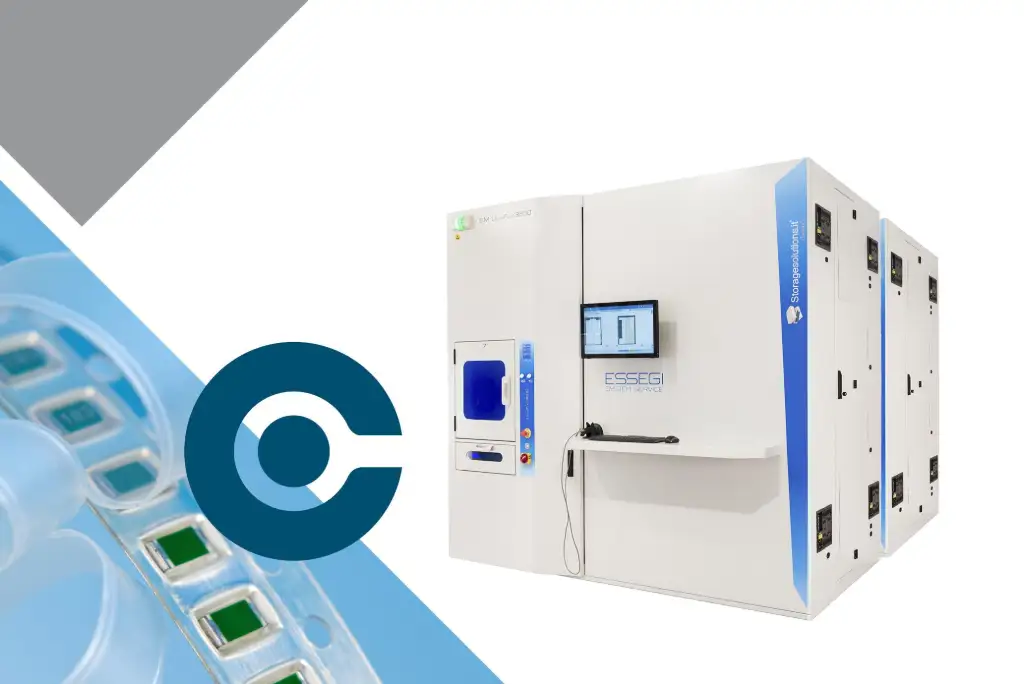

To access even more SMD storage, you can add the ISM 3900 unit behind the ISM 3600 storage system. The combined unites more than doubles the reel storage.

Learn more about the Storage Solution workflow >> click <<

The combined ISM 3600 + 3900 storage solution towers is a super space and time saving solution, e.g. it takes the operator only 60 seconds to extract 27 reels from the unit.

  - Store 7.460 7" reels on 70% less floorspace | Software & integration >

About the SMD storage solution 3600 + 3900

Combined Storage Solution towers
ISM 3600 + 3900

  • Maximum capacity example:
    - ISM 3600 - 3.620 reels with 7" reels
    - ISM 3900 - 3.840 reels with 7" reels
    - Combined = 7.460 reels in total with 7" reels

  • Height of the reels freely configurable up to 88 mm.

  • 24" Touch screen on the front of 3600 tower, that manages both the 3600 + 3900 unit.

  • Humidity control: Optional (FRU+HCU available)

  • Storage Solution server software & integration >

  • Machine size:
    - ISM 3600 - W 2,565 m x D 1,672 m
    - ISM 3900 - W 2,578 m x D 1,379 m
    - Combined = W 2,578 m x D 3,051 m
    - Operative height:  2,455 m - adjustable 110 mm feet
    - Transport height: 2,35 m

  • Machine weight:
    - ISM 3600 - 1.133 kg (empty) | Full of cases 1.685 kg.
    - ISM 3900 - 1.133 kg (empty) | Full of cases 1.685 kg.
    - Combined - 2.266 kg (empty) | Full of cases 3.370 kg.

ISM 3600 + 3900 storage capacity examples

  • 7” reel storage capacity*
    - ISM 3600 - 3.620 reels
    - ISM 3900 - 3.840 reels
    - combined 3600 + 3900 = 7.460 reels in total with 7" reels

  • 13/15” reel storage capacity
    - ISM 3600 - 900 reels
    - ISM 3900 - 950 reels
    - combined 3600 + 3900 = 1.850 reels in total with 13/15" reels

  • 7" + 13/15” reel storage capacity*
    - ISM 3600 - 1.920 + 426 reels
    - ISM 3900 - 1.920 + 475 reels
    - combined = 3.840 + 901 reels in total with 7" + 13/15" reels

*Note that the example is made with different reels heights (up till 88 mm as that is the maximum tray height).

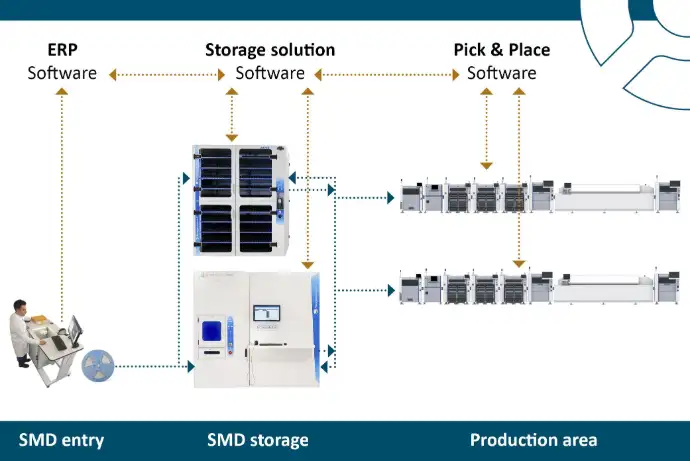

SMD storage solution workflow

SMD storage solution workflow

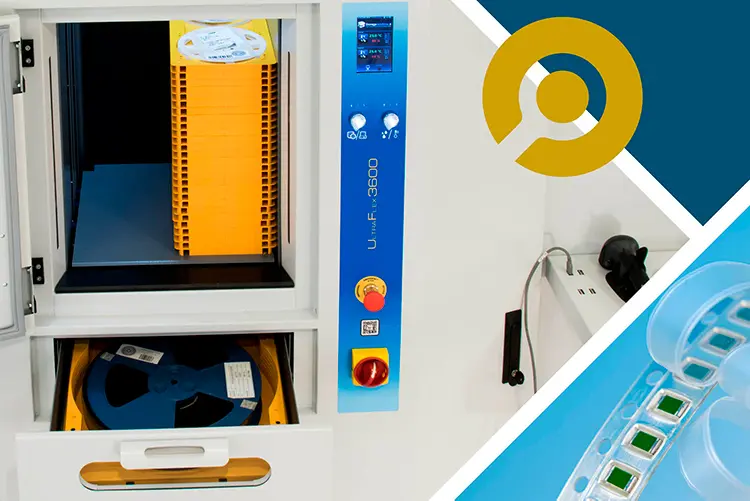

SMD reels gathered by the ISM 3600 + 3900 storage solutions system

SMD reels gathered by the ISM 3600 + 3900 storage solutions system

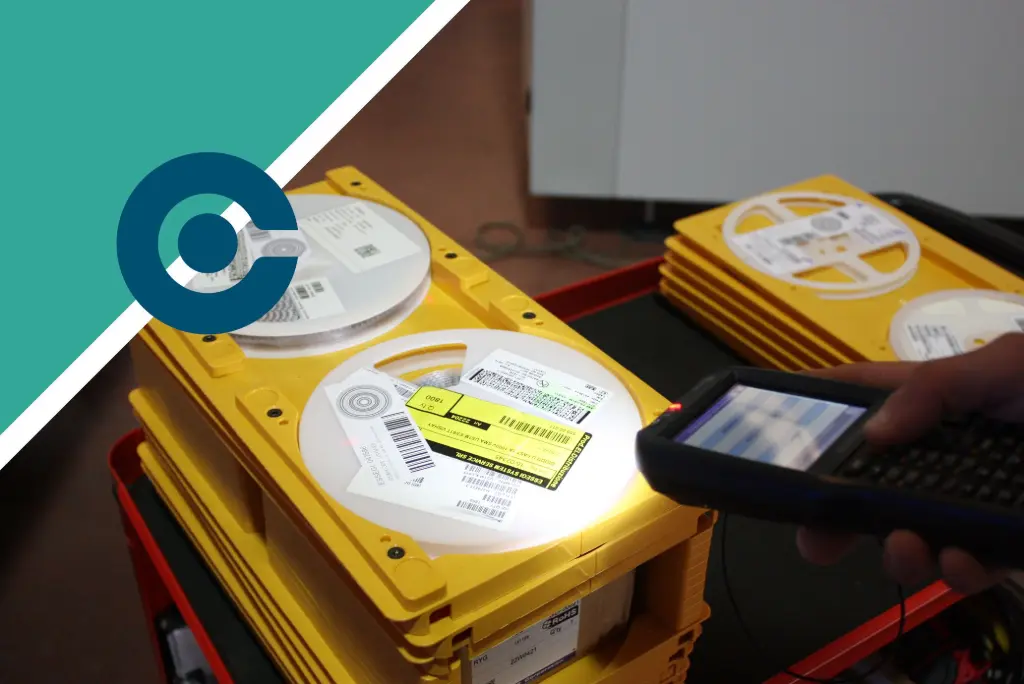

Reel check by PDA of components gathered by ISM 3600 + 3900 storage solution system
