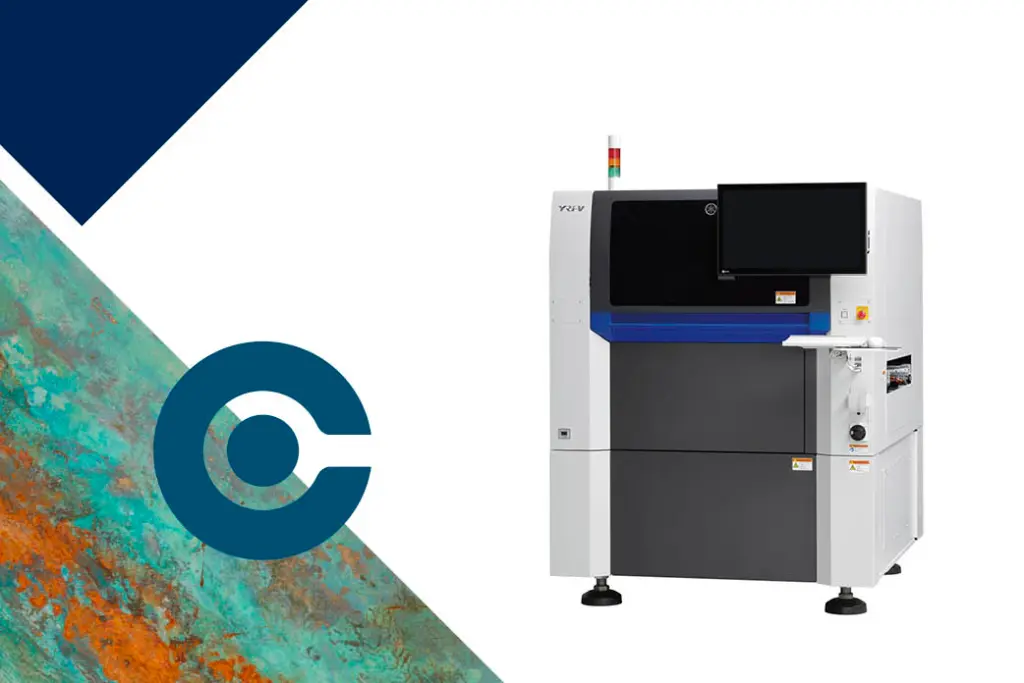

High speed AOI inspection with Yamaha YRi-V HS
Faster inspections. Fewer uncertainties. And an AOI setup that’s ready for where electronics production is heading next.
The high speed version of the Yamaha AOI YRi-V HS takes inspection further - without slowing your line down. With a new 25-megapixel camera, you get a wider field of view at 5 μm resolution. That means fewer images, faster cycles and no compromise on detail.
But the real shift? You can now reliably inspect components that used to be tricky.
Like transparent molding, mirror-like surfaces and even wafer-level components.
With integrated 3D laser and coaxial lighting, the system captures surfaces that traditional AOI struggles with - bringing consistency and confidence into areas that often require manual checks.
- 2D/3D inspection in one AOI solution | 1.6 x faster
About high speed AOI; Yamaha YRi-V HS
High speed AOI inspection with Yamaha YRi-V hs
-
2D inspection
The system is built around a high-resolution 25 MP camera, available with 7 µm or 5 µm optical resolution. A lens system ensures accurate image capture with no perspective distortion, enabling highly precise measurements and repeatable inspection results.
It combines multiple inspection methods - brightness, infrared, color, shape and coaxial lighting - that ensure stable and reliable defect detection across a wide range of components.
-
3D inspection (option)
The optional 3D module uses a 4- or 8-direction structured light projector for precise height measurement and true 3D inspection.
It detects SMD heights up to 25 mm and analyzes key parameters such as slope gradient, coplanarity and orientation.
-
3D Blue Laser for transparent components (option)
-
4 direction (option)
4-way angular camera with 20 megapixel resolution
-
Single or dual lane system
-
Applicable PCB:
- L 610 x W 610 mm (maximum)
- L 50 x W 50 mm (minimum)
- L 750 mm (longer PCB, option)
- Machine size: L 1.252 mm x W 1.497 mm x H 1.614 mm
- Machine weigh: 1.430 kg
-
Speed! Industries fastest inspection speed
- 7 µm = 30.5cm2/s
- 5 µm = 16.2cm2/s
1.6 times faster than previous models
-
Detects cracks and scratches on mirrored surfaces new coaxial lighting.
-
Foreign material detection
-
YSUP Yamaha’s Intelligent Factory Solutions:
- IPro database inspection analysis
- Dashboard live monitoring
- Quality Assurance (QA)
- Mobile judge
- Handles large boards up to 750 mm long.
-
AI library matching
-
Accelerated CAD + CAM conversion with Gerber support
- Through hole technology / THT inspection algorithms
Learn more about this fast AOI? Download the brochure below, watch the video or contact us below.

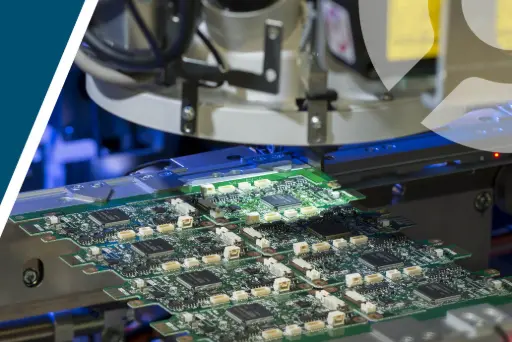

The high speed AOI inspection camera inside the YAMAHA YRi-V typeHS
Download high speed Yamaha AOI brochure
Get the full overview of what high speed inspection really means. From wider field of view to advanced 3D capabilities - see how the YRi-V typeHS keeps your line moving without missing the details.
Video demonstration of the fast Yamaha AOI
See it in action.
Experience how high-resolution inspection, 3D laser technology, and speed come together to handle even the most challenging components - live on the line.
